SMD hollow cup winding machine

Semi-automatic dispensing patch flattening molding machine

Model：PNS-TPCX5130
Maximum coil processing size (mm)：Length: 150mm; Width: 80mm
Power consumption (KW)：1.5KW
Product description:
INQUIRY

https://www.youtube.com/shorts/Zi-tUUP3lYI

Product Introduction

1. Model: PNS-TPCX5130

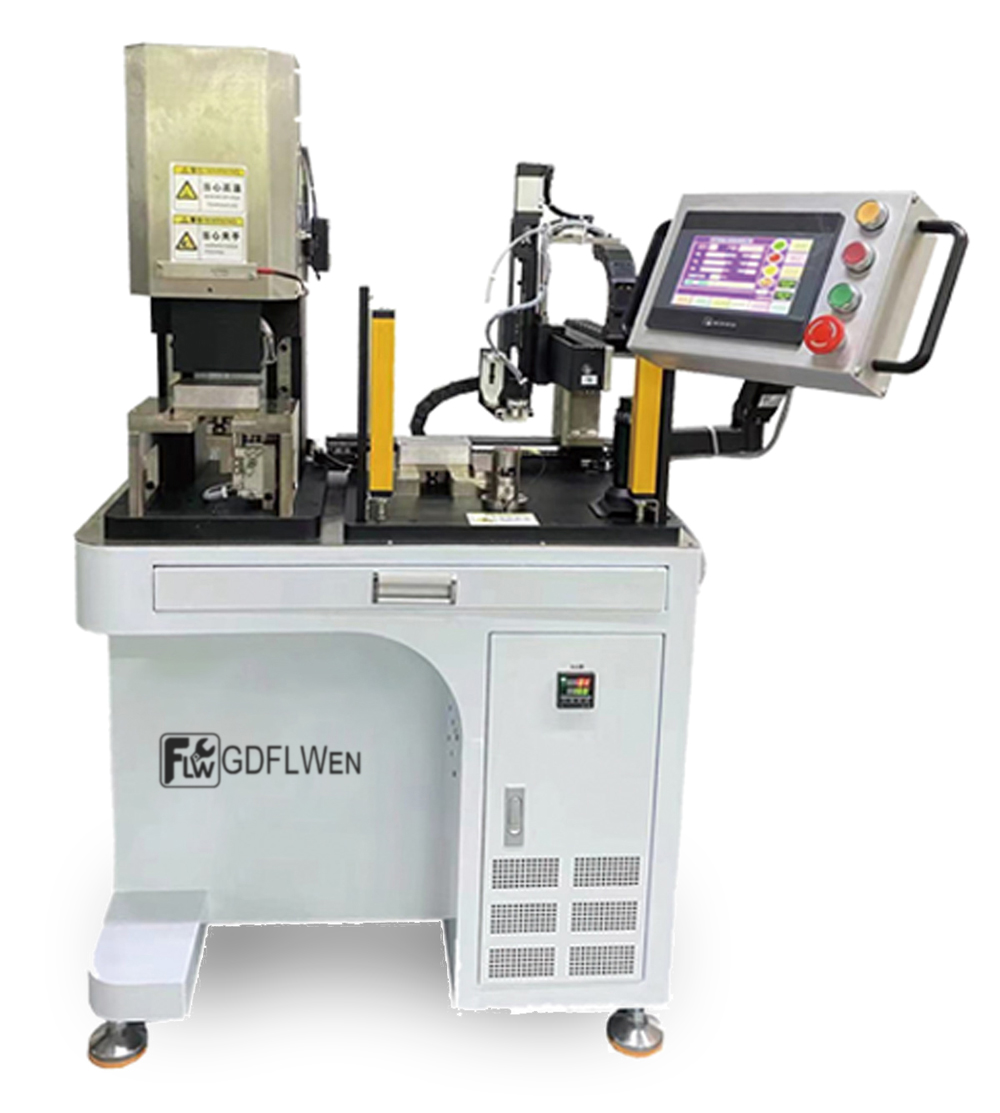

2. Equipment Name: Semi-Automatic Glue Dispensing and Flattening Machine.

3. Function: Precision flattens and shapes wound micro coils or chip components, and glues and secures them in designated locations according to process requirements.

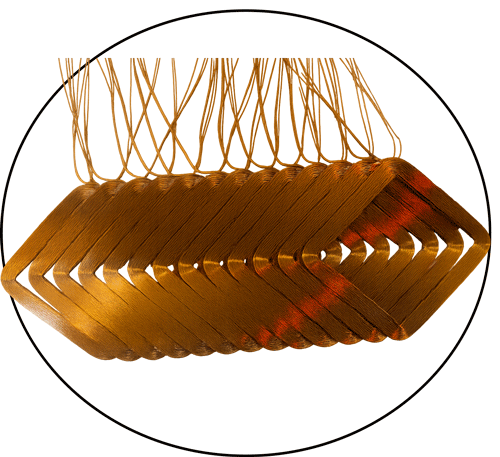

4. Applications: Glue dispensing for forming and molding tiny components such as hollow coils, voice coils, and inductors.

Features

Serial Number	Project	Description

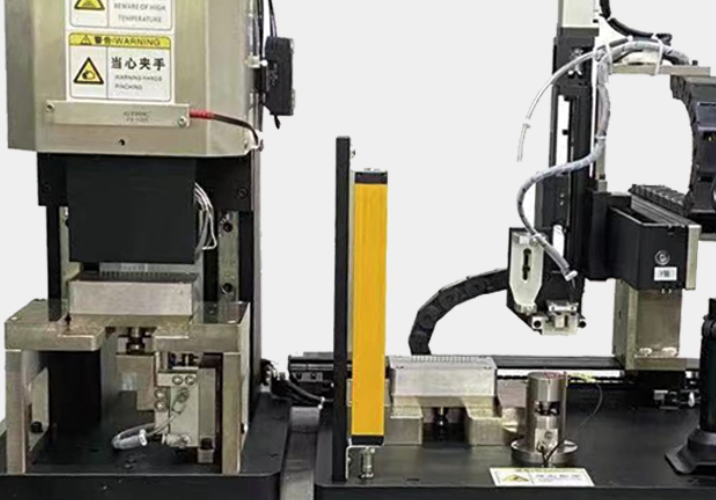

1	Precision Structure	High - precision air cylinder + slide rail system, uniform pressure, repeatable precision
2	Precise Dispensing	Stable glue volume, supports control of multiple glue types for points/lines/surfaces
3	Easy Operation	PLC interface control, free switching between manual and automatic modes
4	Adjustable Mold	Pressure head size and stroke adjustable, suitable for various products
5	Visual Recognition	Can integrate CCD system for auxiliary alignment (optional)
6	Modular Design	Easy to integrate with upstream/downstream stations or production lines, convenient maintenance
7	Cost Control	Compared with fully automatic equipment, lower cost, faster debugging, production capacity adaptable

Interconnected Production Lines

1. Common Coil Production Line Combinations (for reference)

Hollow-Core Coil Production Line:

Automatic Winding Machine → Welding Machine → Gluing/Patch Flattening Machine → Drying → Inspection → Labeling/Packaging

SMD Inductor Production Line:

Dual-Head Winding Machine → Automatic Welding Machine → Gluing/Patch Flattening Machine → Drying → Automatic SMD Packaging → Inspection

Micro Coils for Headphones/Sensors:

Micro Winding Machine → Spot Welding Machine → Gluing/Patch Flattening Machine → Laser Marking → Packaging

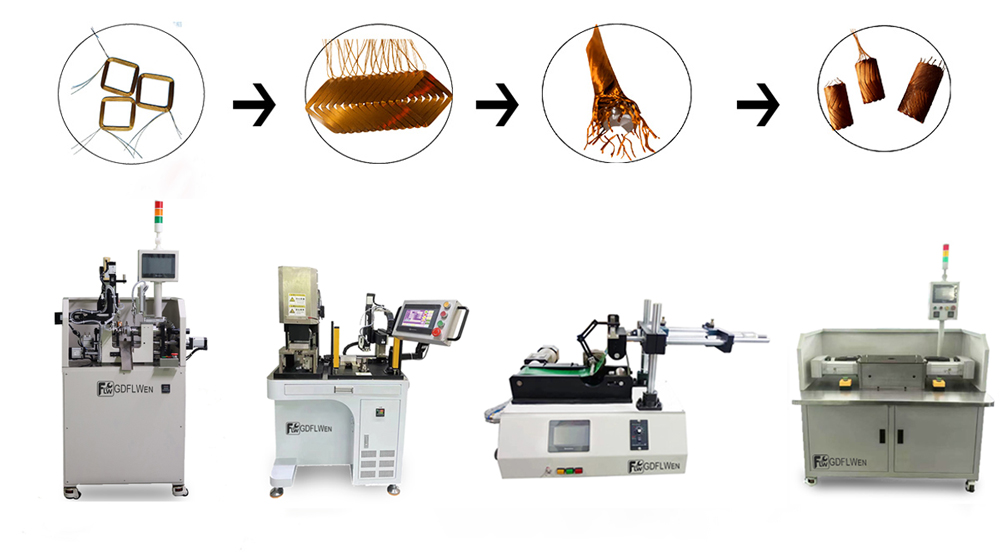

2. As shown in the figure below, this equipment can be combined with a fully automatic hollow-core coil winding machine, a semi-automatic primary coiling machine, and a precision coiling machine to form a semi-automatic or automated production line.

Specifications

Item/Model	PNS-TPCX5130
Maximum coil processing size (mm)	Length: 150mm; Width: 80mm
Maximum spindle speed (rpm)	500rpm
DC closed-loop stepping	Indexing plate, 86-type closed-loop stepping, dispensing, 57 closed-loop stepping
Axis rotation angle	360 degrees per circle, setting unit: 0.1 degree
Axis stopping accuracy	±1°
Equipment curing heating temperature	30~500 degrees
Axis movement (mm)	X: 10mm / Y: 50mm / M: 1200mm
Axis movement transfer speed (mm/sec)	350mm/sec
Control method	CNC 5-axis control board (independently developed)
Storage method	RAM + FLASH storage
Power supply voltage	Single-phase three-wire system; 220V, 50HZ
Power consumption (KW)	1.5KW
Compressed air pressure (MPa)	0.5MPa
Overall dimensions LWH (mm)	1200mm × 800mm × 1410mm
Equipment weight (Kg)	230Kg
