SMD hollow cup winding machine

Coil preliminary rolling machine

Model：PNS-GY1030A
Maximum coil processing size (mm)：Height: 80mm; Length: 200mm
Maximum spindle speed (rpm)：500rpm
Power consumption (KW)：0.5KW
Product description:
INQUIRY

Product Introduction

1. Model: PNS-GY1030A

2. Equipment Name: Semi-automatic Pre-rolling Machine.

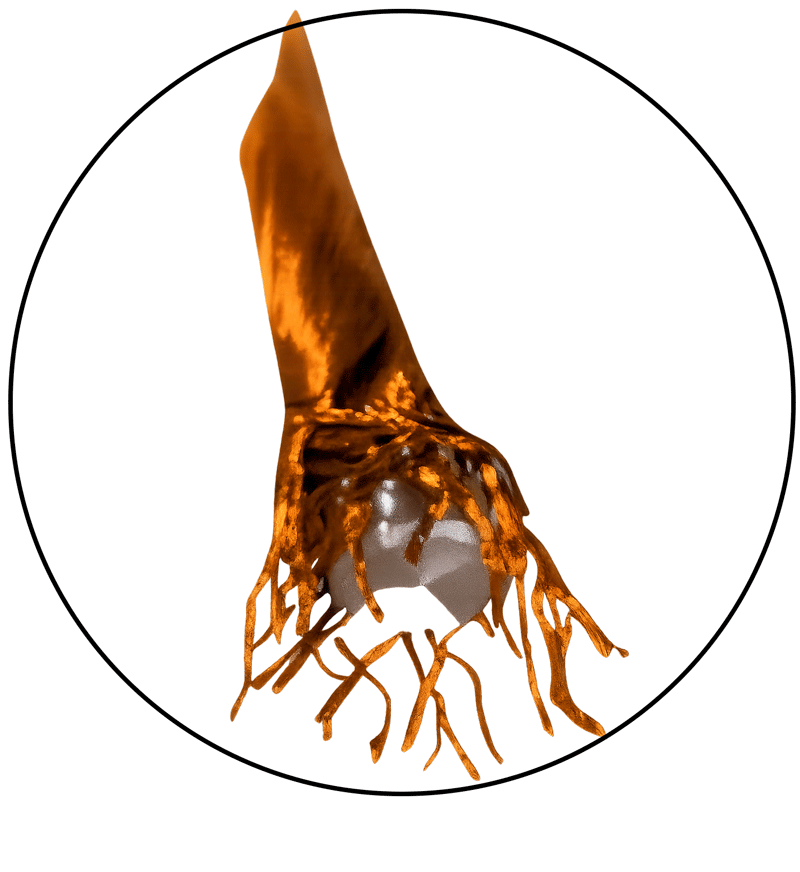

3. Function: Designed for the initial rolling of wound hollow coils (or coil bobbins). This machine pre-bends flat or unformed coils into a round cup shape, preparing for subsequent processing.

4. Applications: Hollow cup motor coils, armatures, magnetic core forming, Bluetooth headset voice coils, induction coils.

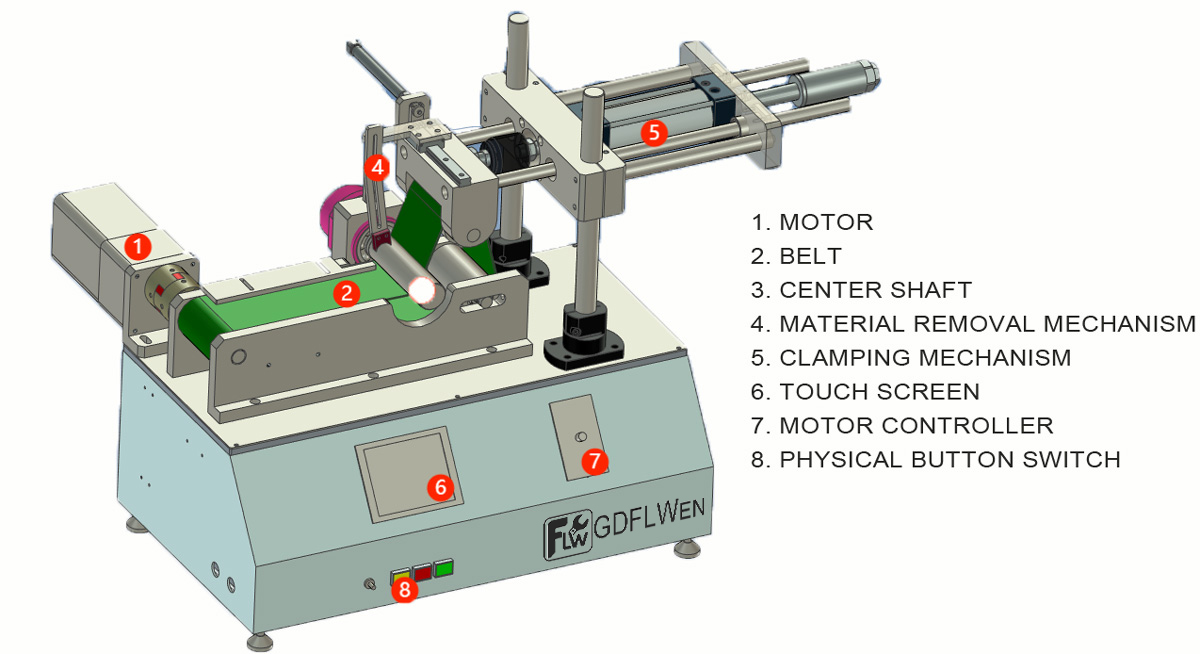

Semi-automatic primary round rolling machine structure diagram

Features

Serial No.	Performance Item	Description
1	Wide Applicable Coil Sizes	Supports small to medium - sized air - core coils, such as headphone coils, motor stators, magnetic sensors, etc.
2	High Coiling Uniformity	Uniform initial coiling arcs, facilitating subsequent forming or welding and improving product yield
3	Easy Mold Replacement	Supports quick switching of molds with different diameters, adapting to multi - specification production
4	Simple Operation & Quick Mastery	Semi - automatic control mode, allowing ordinary workers to be on - the - job after short - term training
5	Compact & Durable Structure	Stable frame structure, small footprint, suitable for assembly line layout use

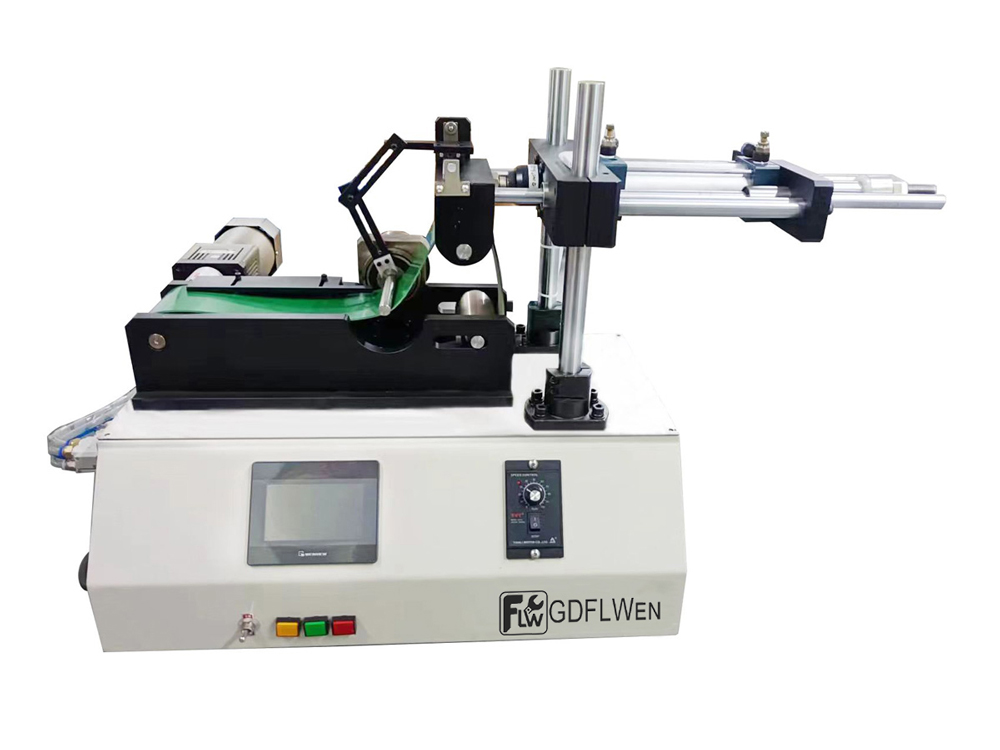

Product Details（照片）

The most critical component of a semi-automatic primary coiling machine is the coiling die system (also known as the coiling assembly or forming roller assembly). Its core functions include coiling and forming, controlling roundness and size, preventing coil deformation, accommodating multiple sizes, and providing guidance and clamping.

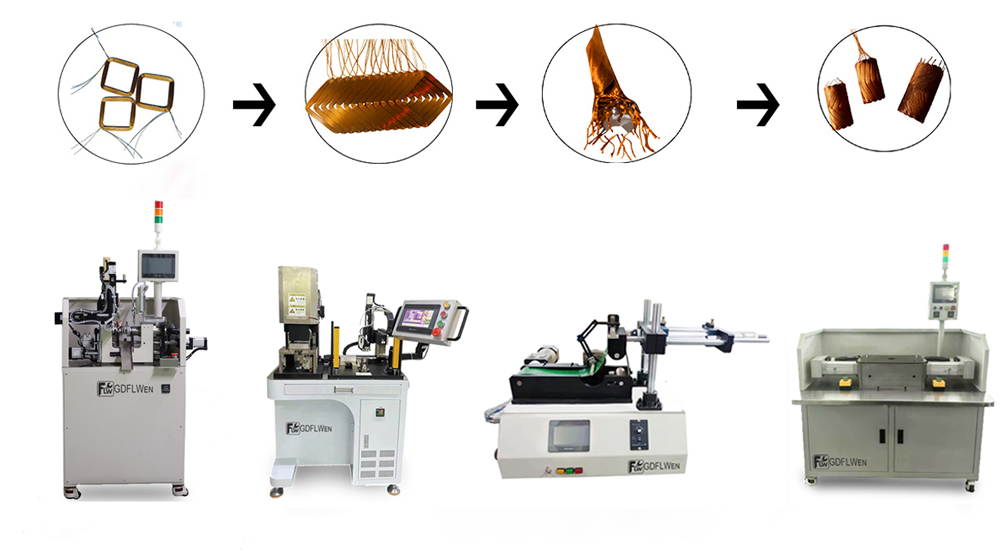

Docking automated production line

Process Step	Equipment Name	Function Description
1	Automatic Winding Machine (or Double - Head Winding Machine)	Wind enameled wire into air - core coils
2	Wire Welding Machine / Soldering Machine	Weld coil pins to external leads
3	Semi - Automatic Initial Coiling Machine	Coil wires into cup shapes, preparing for subsequent pressing or encapsulation
4	Flattening & Shaping Machine / Sizing Machine	Precisely shape coiled coils to ensure uniform dimensions

This equipment can be combined with the fully automatic hollow winding machine, the dispensing patch flattening machine, and the precision round forming machine to form a semi-automatic or automatic production line.

Specifications

Item/Model	PNS-GY1030A
Maximum coil processing size (mm)	Height: 80mm; Length: 200mm
Maximum spindle speed (rpm)	500rpm
Motor	Asynchronous motor, equipped with reducer
Axis rotation angle	360 degrees per circle, setting unit: 0.1 degree
Axis stopping accuracy	±1°
Equipment curing heating temperature	No heating
Control method	CNC 5-axis control board (independently developed)
Storage method	RAM + FLASH storage
Power supply voltage	Single-phase three-wire system; 220V, 50HZ
Power consumption (KW)	0.5KW
Compressed air pressure (MPa)	0.5MPa
Overall dimensions LWH (mm)	900mm × 600mm × 600mm
Equipment weight (Kg)	50Kg
