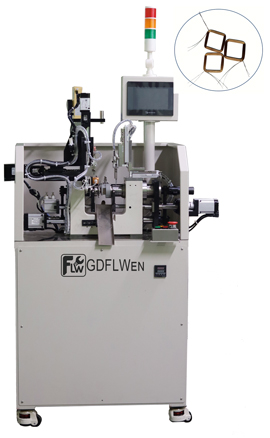

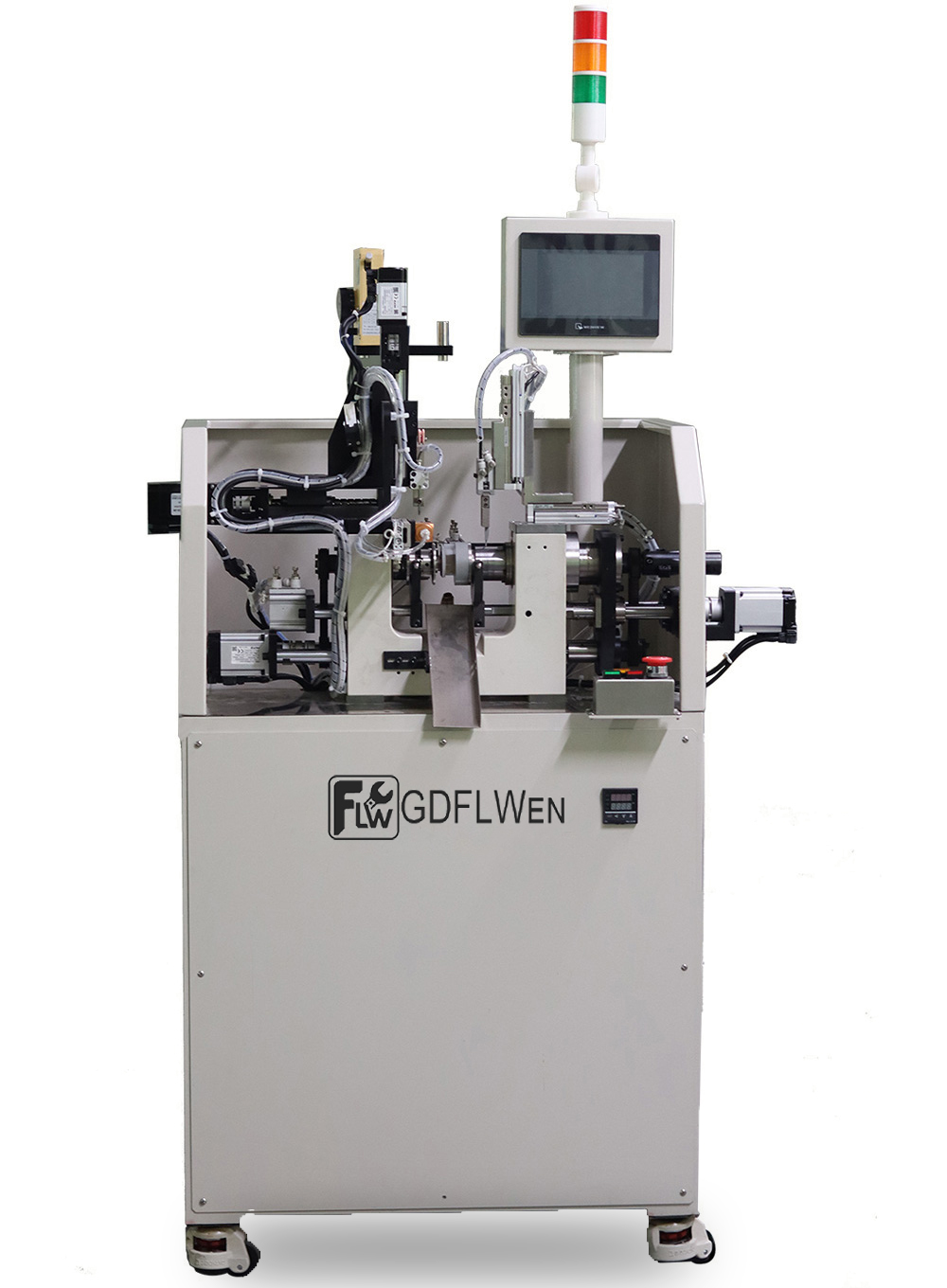

Chip hollow coil winding machine

https://www.youtube.com/shorts/0rFwhg5OAsU

Product Introduction

2. Fully Automated Process Control: One-touch start completes the entire process from feeding → tension control → wire arrangement and winding → wire trimming → finished product ejection, requiring no manual intervention. It can be linked with peripherals such as robotic arms and receivers to create a complete production line.

3. Dual/Multi-Station Design (Optional): Dual-Station Synchronous Winding doubles production efficiency and supports simultaneous winding of different specifications.

4. Constant Tension System: Utilizes a magnetic powder tensioner or servo tension control system to ensure consistent wire tension without loosening or breakage.

5. Modular Structure: Quick Changeover: Dies and chucks can be quickly replaced to accommodate a wide range of winding specifications with minimal changeover time. 6. Intelligent operation interface: touch screen control, support Chinese/English language switching, and can store multiple sets of product parameters.

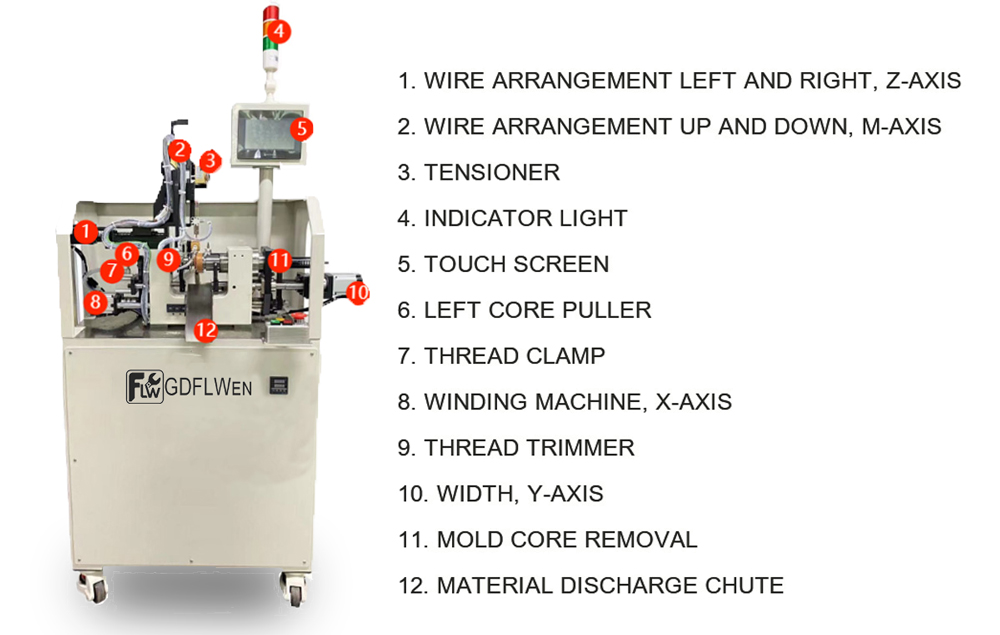

Product Details

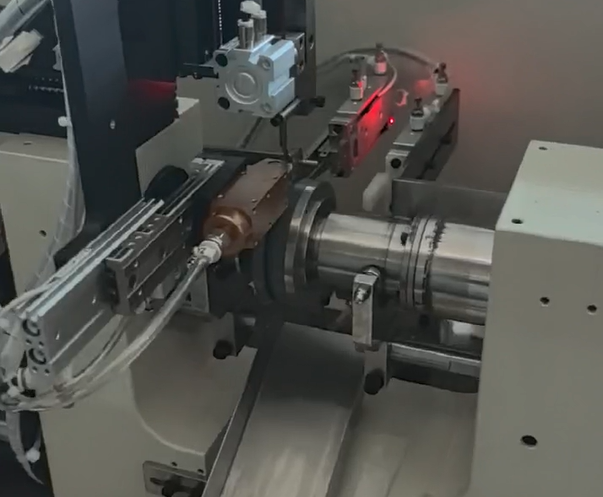

Wounding Mechanism Functions:

1. Drives wire into coils

2. Controls wire pitch and density

3. Enables different winding methods

4. Accommodates a variety of wire diameters and materials

5. Integrates a tension assist system

6.High-speedrotationandrepositioningcapabilities

Integration with Automatic Production Lines

1. Flexible integration with various equipment to create different types of automated production lines, achieving an efficient, stable, and integrated manufacturing process from raw materials to finished coils.

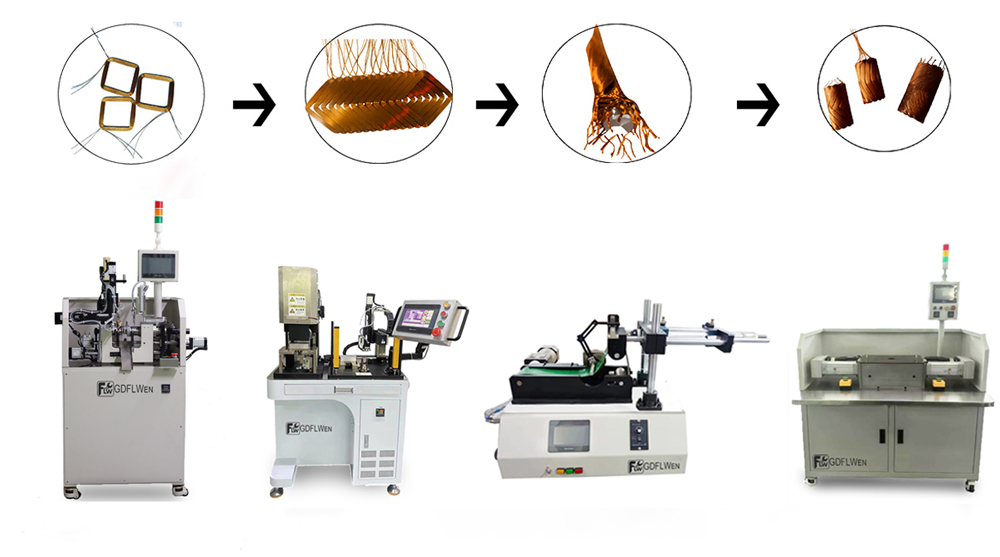

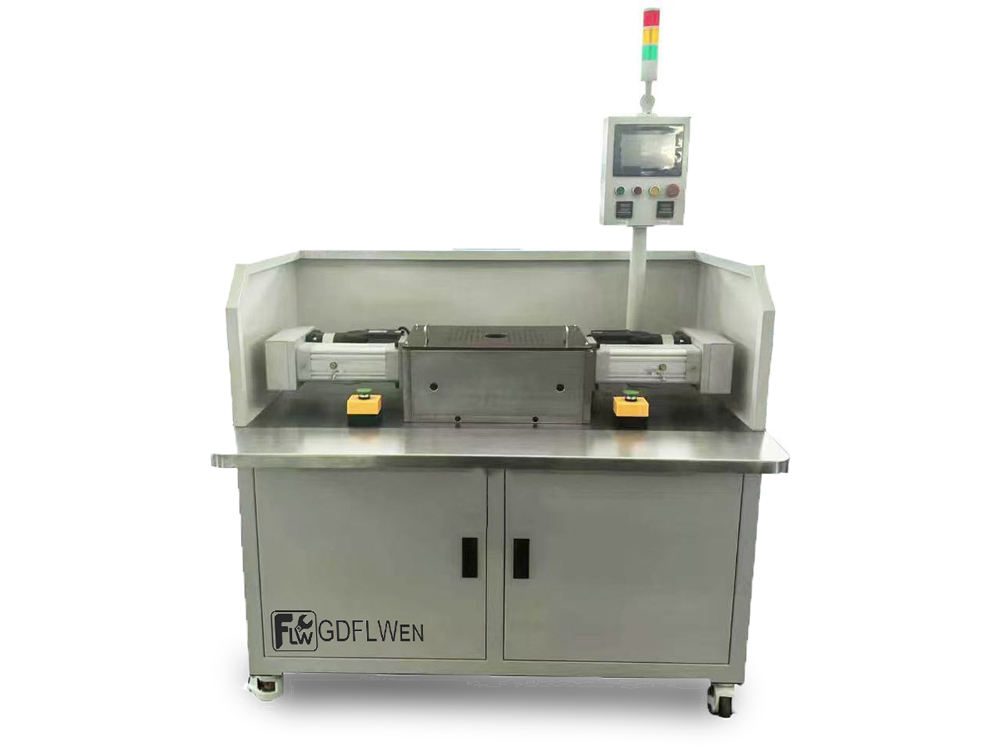

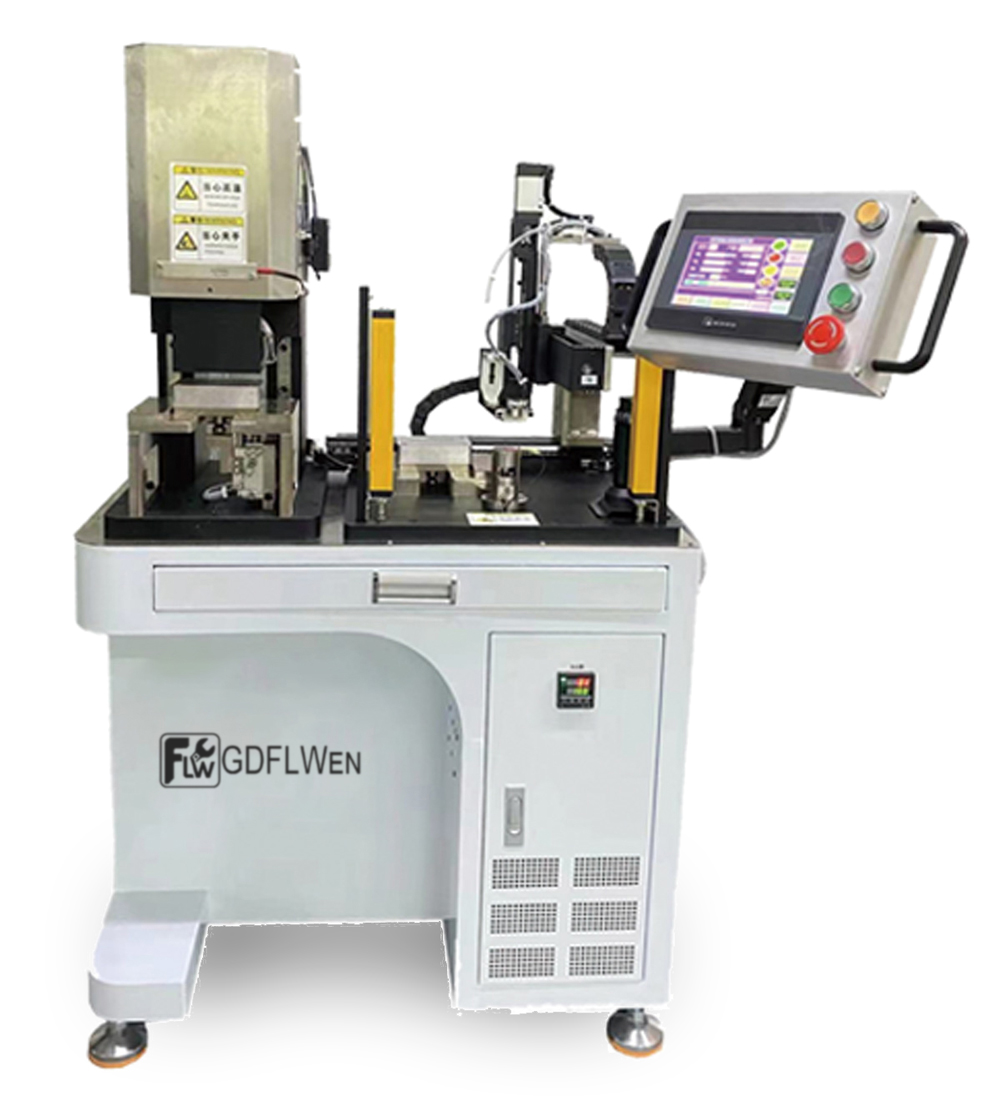

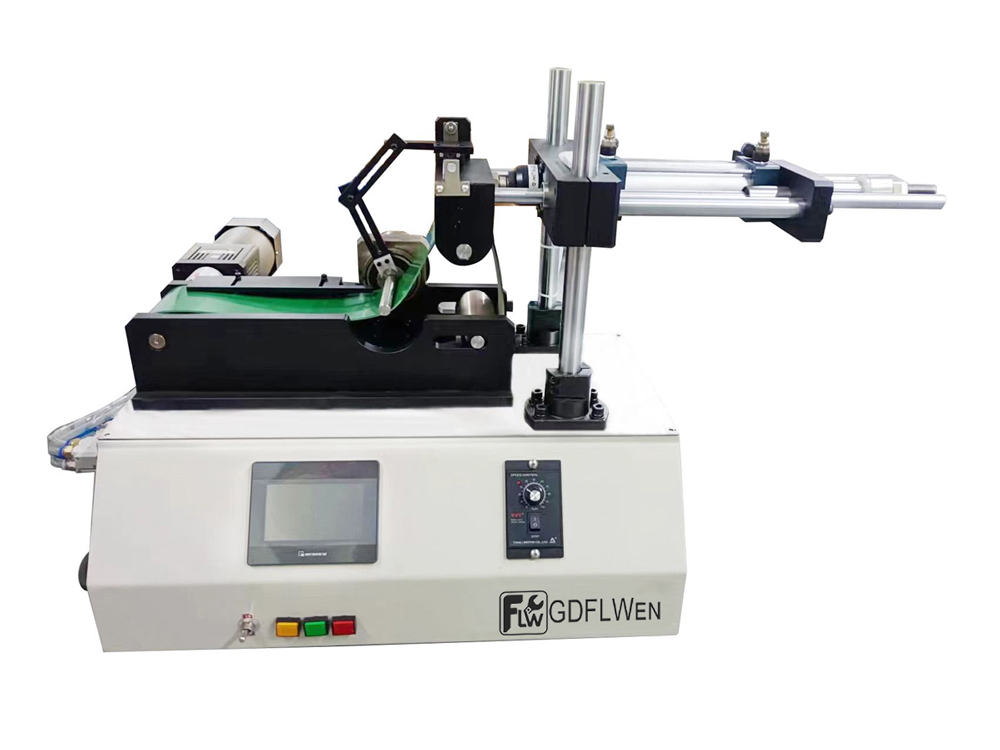

2. As shown below, this equipment can be combined with a dispensing and patch flattening machine, a semi-automatic primary coiling machine, and a precision coiling machine to create a semi-automatic or automated production line.

Specifications
