Flat winding hollow cup winding machine

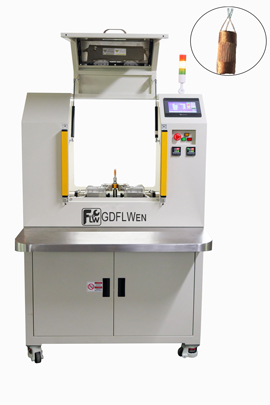

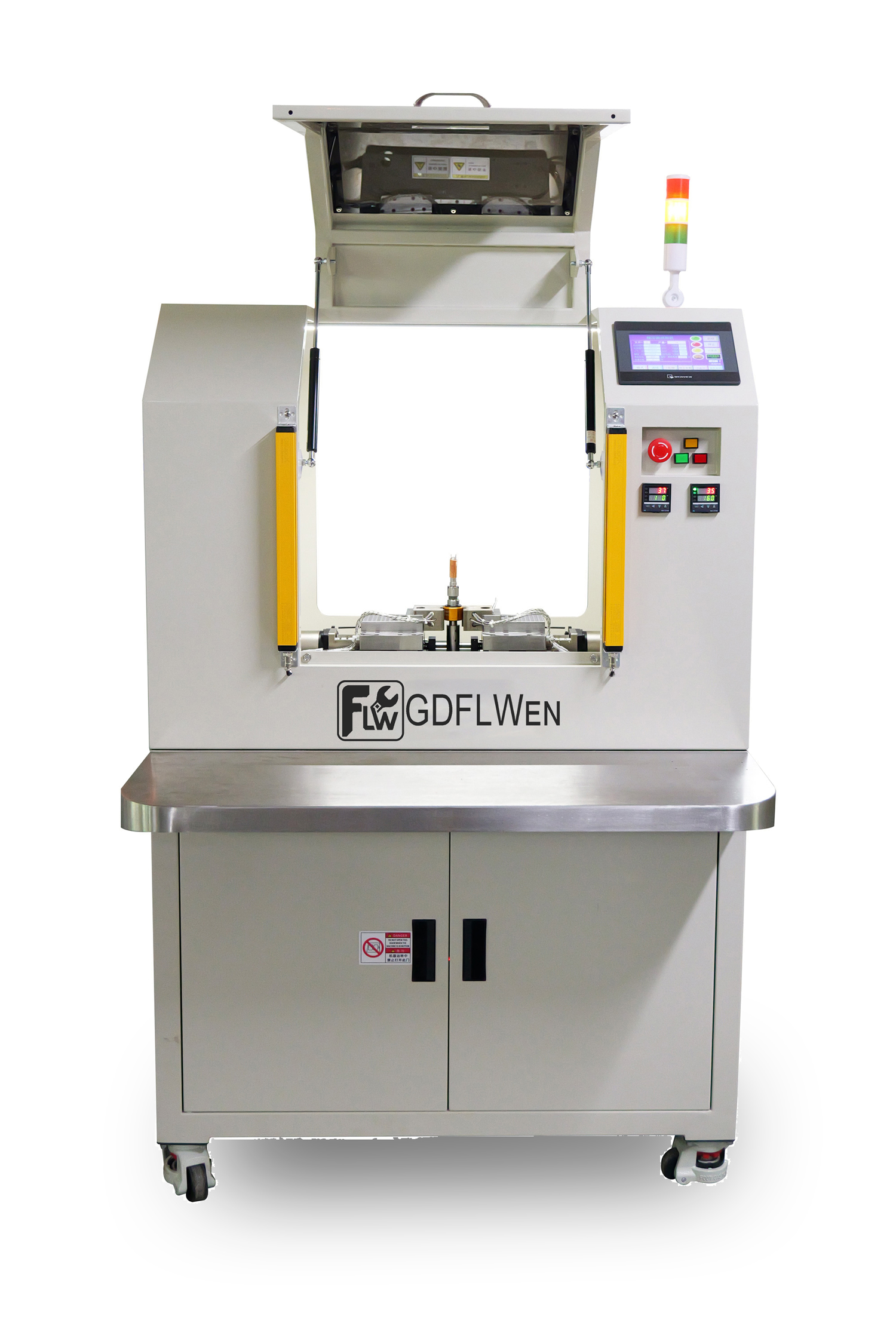

Flat coil precision rolling machine
- Model:CWJX-500N-2540
- Max. Spindle Speed (rpm):500rpm
- Shaft Stopping Accuracy:±1°
- Applicable Wire Diameter (mm):0.05mm - 0.25mm
- Product description:
https://www.youtube.com/shorts/rs_U9d3RNzY
Product Introduction
1. Model: CWJX-500N-2540
2. Equipment Name: Precision Round Forming Machine

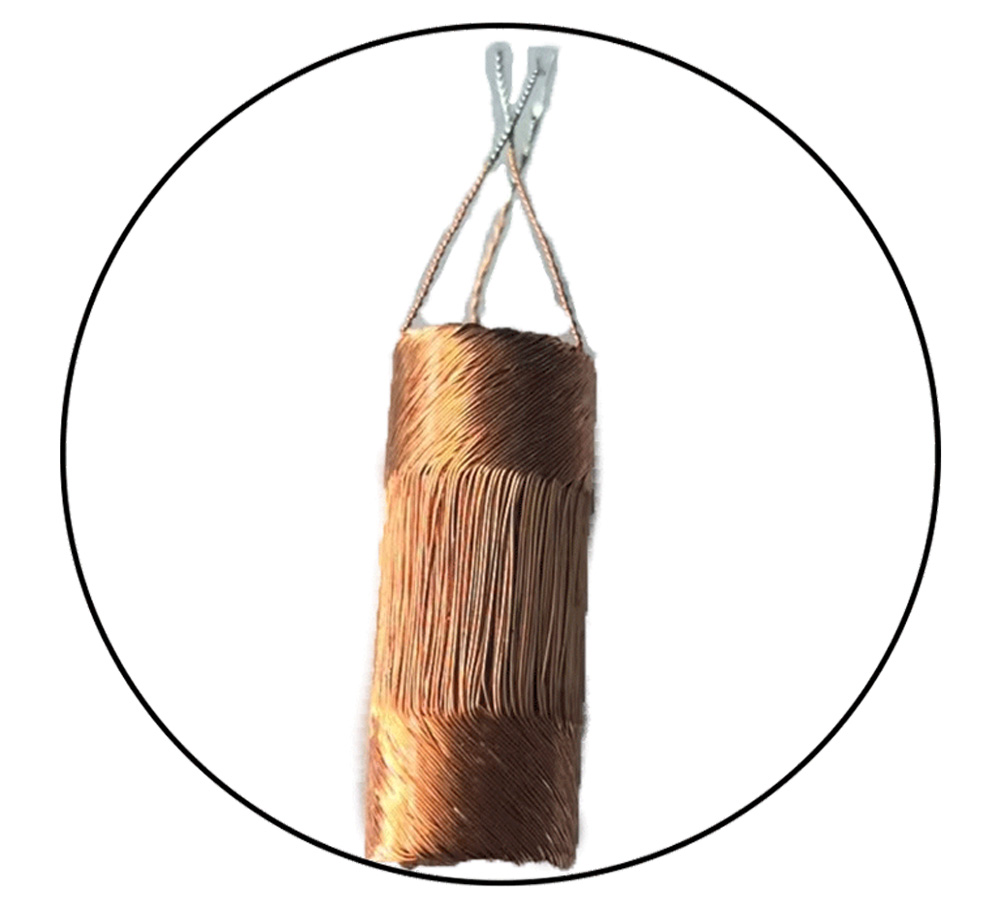

3. Function: Specialized equipment for precisely pressing and rolling fine wires (such as enameled wire and copper wire) into round coils with high precision. Suitable for automated batch processing of various fine wire coils.
4. Designed Capacity: 100-180 units/hour.
5. Application: Widely used in the production of precision electromagnetic components such as coreless motors, voice coil inductors, and high-frequency transformers.
Application
1.Coreless motors, micro motors, headphone coils, small precision coils, etc.
2.Focused on high-precision, high-efficiency, miniaturized, and low-inertia motors.

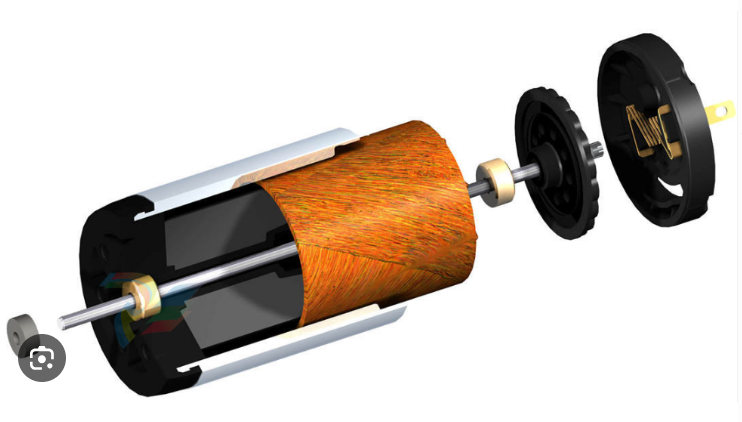

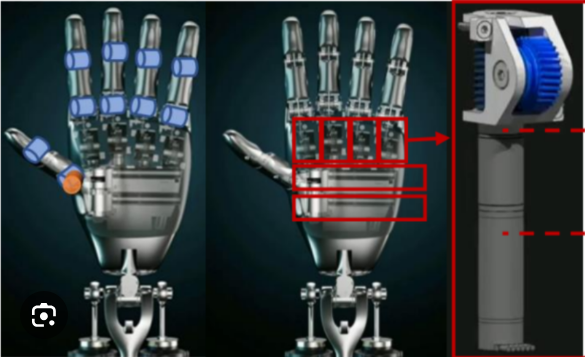

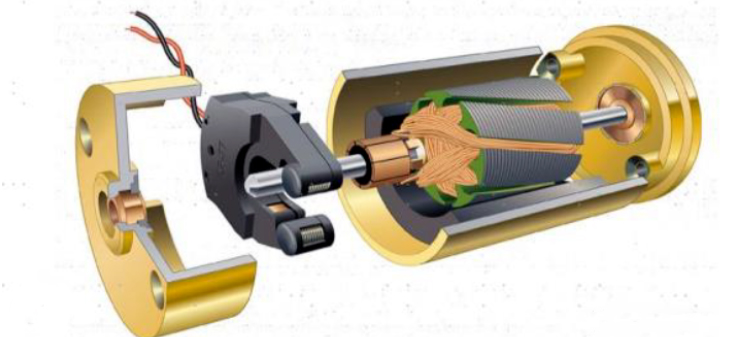

3.Coreless motors are widely used in aerospace, medical devices, precision instruments, industrial robots, humanoid robots, and some consumer electronics.
Features
1. High-Precision Control System: Equipped with a servo motor and high-resolution sensor, it achieves ±0.01mm precision control.
2. Reliable Mechanical Structure: The machine body is constructed of a high-strength alloy, resistant to wear and vibration, and suitable for long-term high-speed operation.
3. Intelligent Operating System: Utilizes a human-machine interface (HMI) + PLC control system, supporting Chinese and English language switching.
4. Flexible Adaptability to Multiple Wire Specifications: Processes a wide range of wire diameters (e.g., 0.02mm to 0.5mm).
5. Energy-Efficient, Easy-Maintenance: The machine features low power consumption, high operating efficiency, and is suitable for 24/7 operation.

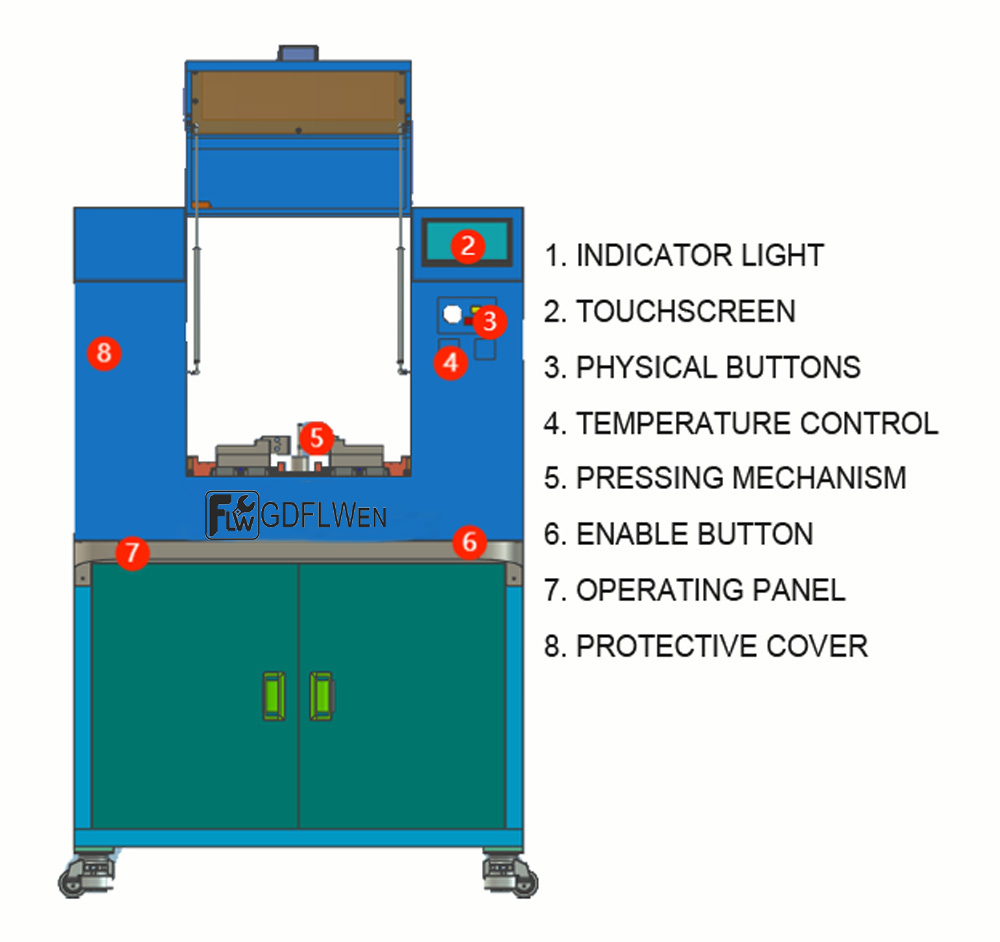

Product Details

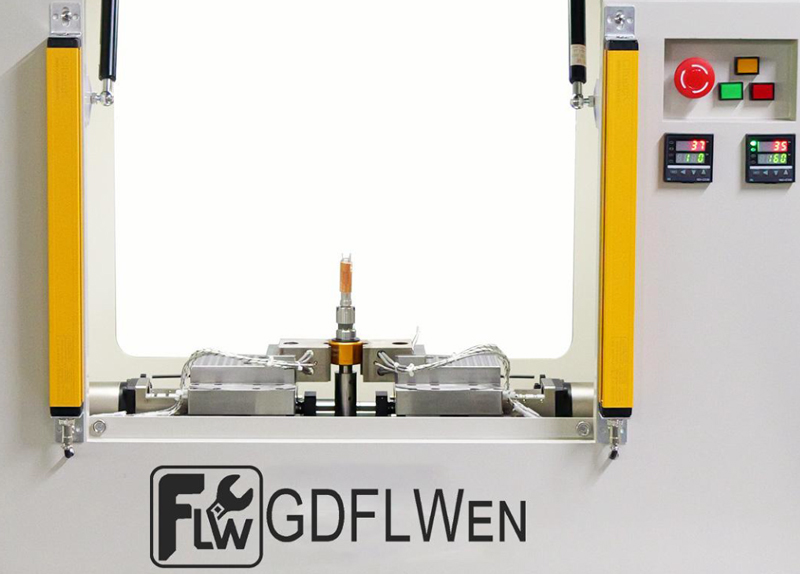

Pressure Mechanism,The wire passes through the precision pressing mechanism, where it is flattened into the desired shape by upper and lower rollers or a clamping roller at a set pressure.

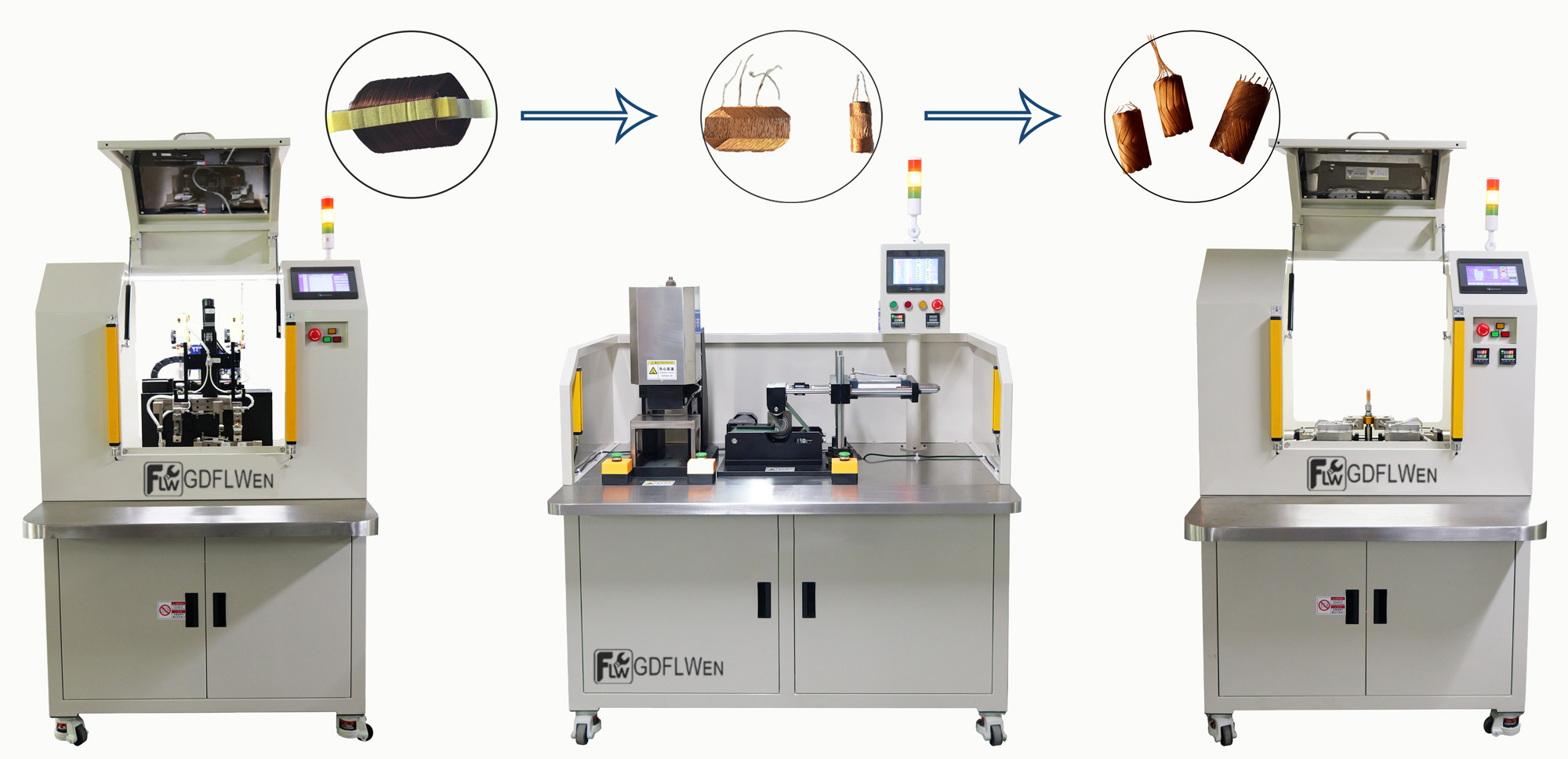

Coil production line
Coil winding---coil flattening and rounding--coil precision pressing and rounding
Specifications
|
Item/Model |
CWJX-500N-2540 |
|
Max. Coil Size (mm) |
Outer Diameter: 25mm Height: 40mm |
|
Max. Spindle Speed (rpm) |
500rpm |
|
Shaft Rotation Angle |
360 degrees per circle, setting unit: 1 degree |
|
Shaft Stopping Accuracy |
±1° |
|
Applicable Wire Diameter (mm) |
0.05mm - 0.25mm |
|
Electric Cylinder Stroke (mm) |
Max. 50mm |
|
Shaft Movement Transfer Speed (mm/sec) |
350mm/sec |
|
Control Method |
CNC 5-axis Control Board |
|
Storage Method |
RAM + FLASH Storage |
|
Power Supply Voltage |
Single-phase three-wire system |
|
220V, 50HZ |
|
|
Power Consumption (KW) |
3KW |
|
Compressed Air Pressure (MPa) |
0.5MPa |
|
Dimensions L*W*H (mm) |
1000mm*900mm*1410mm |
|
Weight (Kg) |
260Kg |
