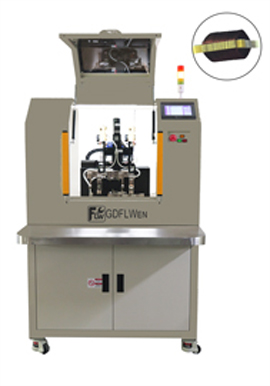

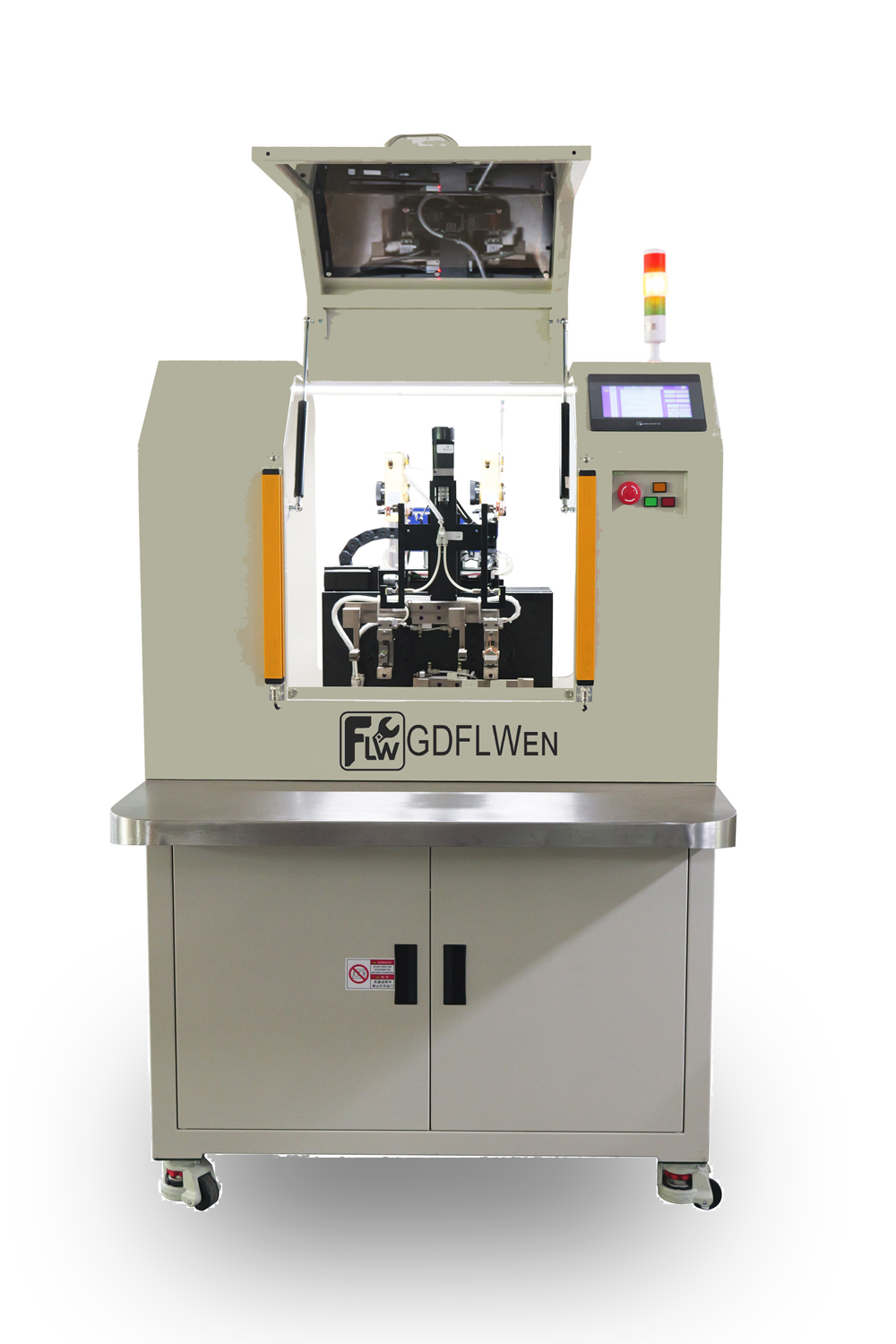

Flat winding hollow cup winding machine

Flat-wound hollow coil winding machine

Max. Coil Size (mm)：Outer Diameter: 25mm; Width: 100mm
Max. Spindle Speed (rpm)：3000rpm
Shaft Stopping Accuracy:±1°
Applicable Wire Diameter (mm):0.05mm - 0.25mm
Product description:
INQUIRY

https://www.youtube.com/shorts/lLmufigjPl4

Product Introduction

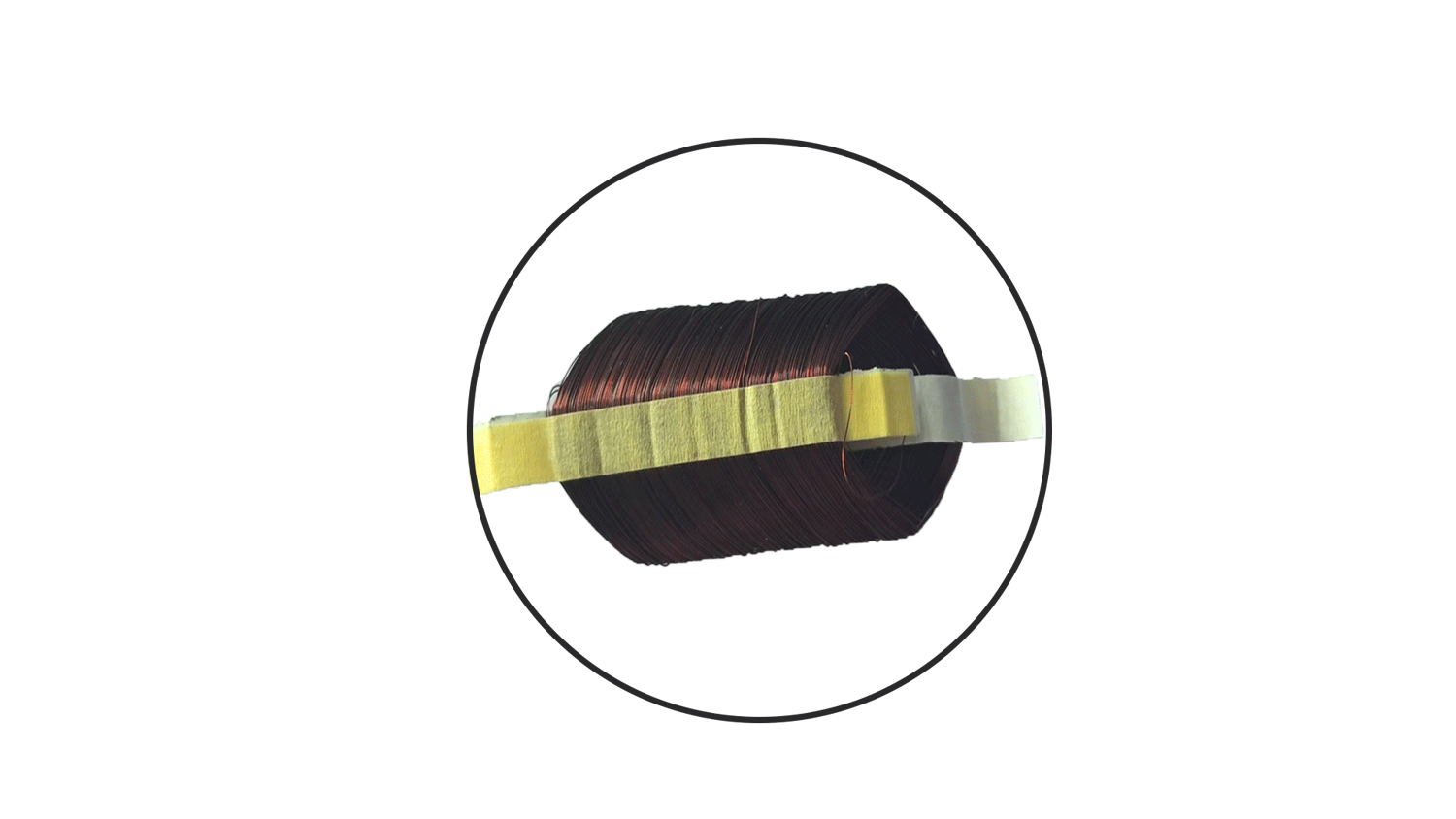

1. Commonly used for winding motor stators or hollow coils.

2. Capable of automated winding and arranging, twisting, cutting, and unloading with manual tape application.

3. Production Capacity: 150 coils, approximately 80 units/hour.

Application

1.Coreless motors, micro motors, headphone coils, small precision coils, etc.

2.Focused on high-precision, high-efficiency, miniaturized, and low-inertia motors.

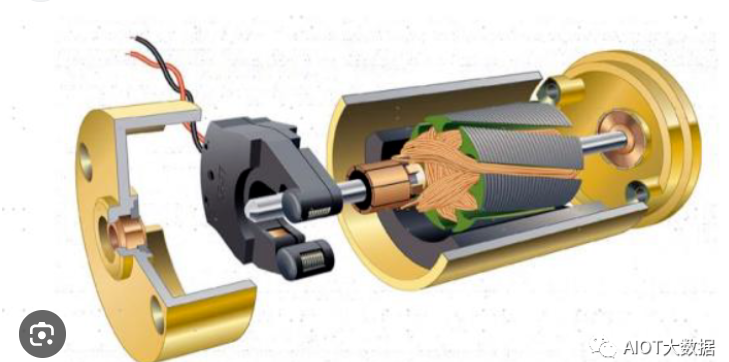

3.Coreless motors are widely used in aerospace, medical devices, precision instruments, industrial robots, humanoid robots, and some consumer electronics.

Features

1. Winding Accuracy: Reaches ±0.05mm, ensuring coil turn count and uniformity, meeting the electrical performance requirements of coreless motors.

2. Winding Speed: Maximum speed is no less than 4000 rpm, adjustable to suit different motor specifications.

3. Applicable Wire Diameter Range: Supports winding enameled wire with a diameter of 0.05-0.5mm.

4. Control System: Utilizes an advanced CNC control system with features such as automatic wire routing, wire breakage detection, and turn counting, enabling storage and recall of multiple winding programs.

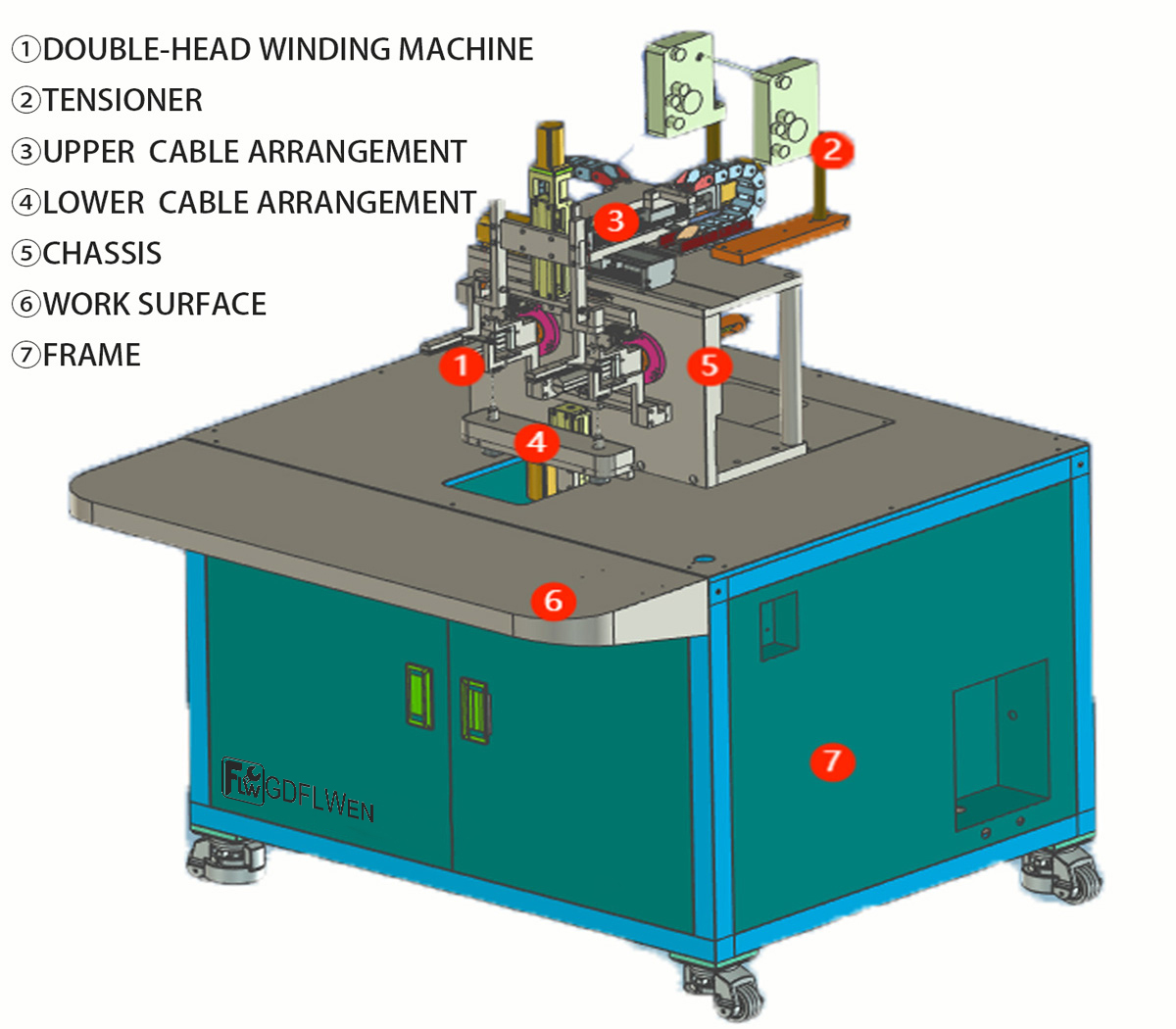

Product Details

Coil production line

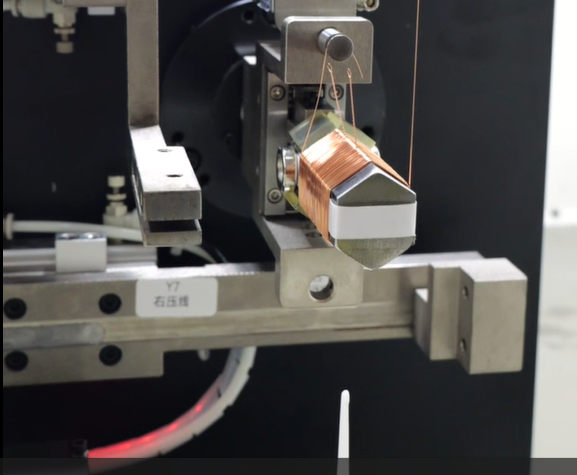

Coil winding---coil flattening and rounding--coil precision pressing and rounding

Specifications

Item/Model	PNS-PR0420
Max. Coil Size (mm)	Outer Diameter: 25mm; Width: 100mm
Max. Spindle Speed (rpm)	3000rpm
Shaft Rotation Angle	360 degrees per circle, setting unit: 0.1 degree
Shaft Stopping Accuracy	±1°
Applicable Wire Diameter (mm)	0.05mm - 0.25mm
Shaft Movement Transfer Speed (mm/sec)	350mm/sec
Control Method	CNC 5-axis Control Board (Self-developed)
Storage Method	RAM + FLASH Storage
Power Supply Voltage	Single-phase three-wire system
Power Supply Voltage	220V, 50HZ
Power Consumption (KW)	3.5KW
Compressed Air Pressure (MPa)	0.5MPa
Dimensions LWH (mm)	1000mm900mm1410mm
Weight	450Kg
