Flat winding hollow cup winding machine

Hollow coil flattening and rolling machine

Max. Coil Size (mm):Height: 40mm Length: 100mm / Diameter: 7 - 25mm
Max. Spindle Speed (rpm):500rpm
Applicable Wire Diameter (mm):0.05mm - 0.25mm
Power Consumption (KW):0.5KW
Product description:
INQUIRY

https://www.youtube.com/shorts/cvLNTWxxzeY

Product Introduction

1. Model: PNS-YJ5130

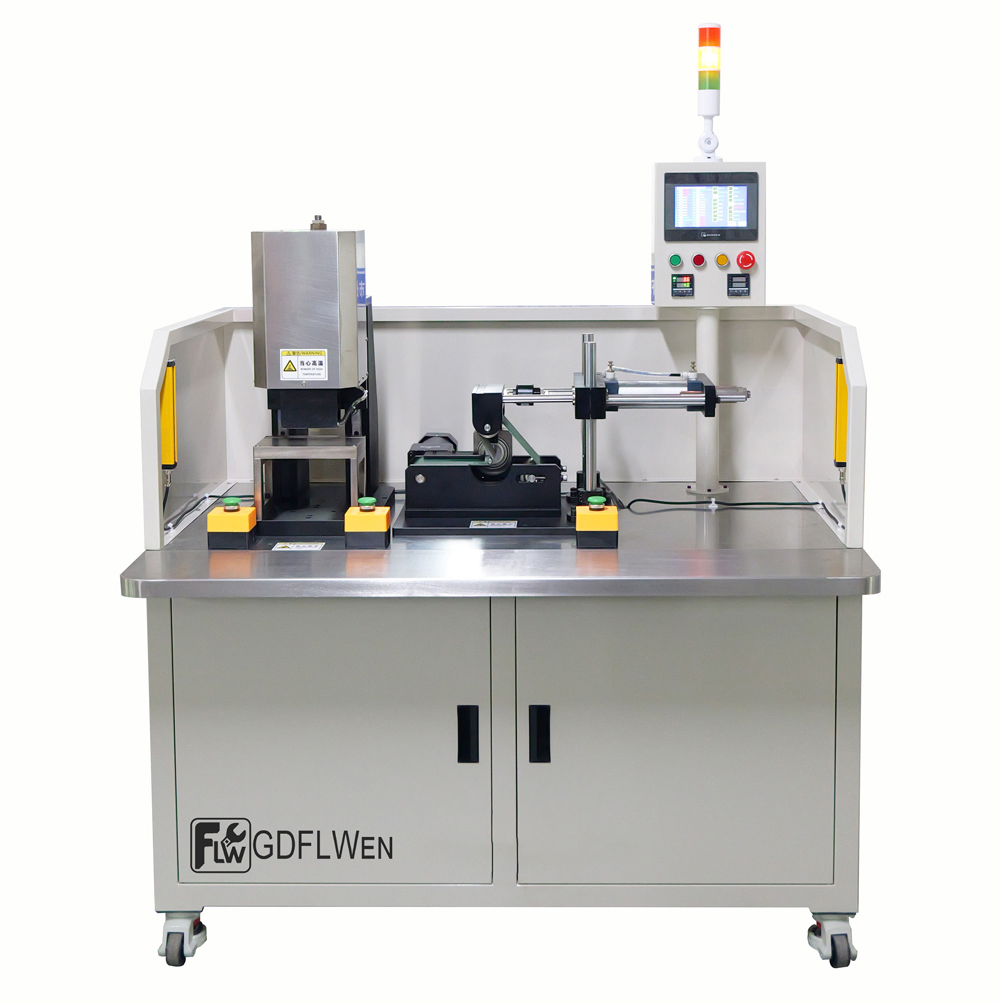

2. Equipment Name: Coreless Coil Flattening and Coiling Machine.

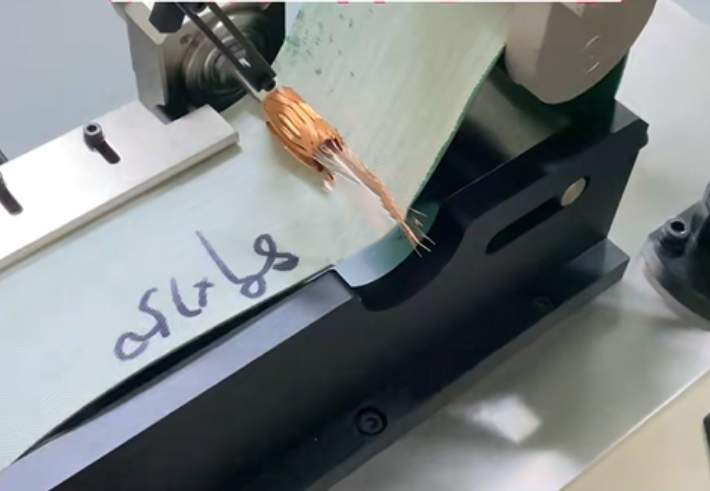

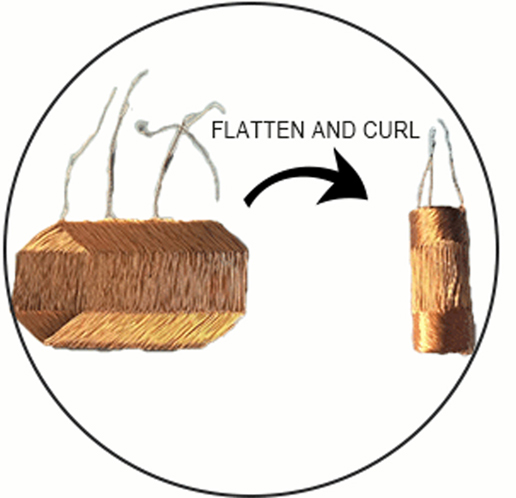

3. Function: This all-in-one coil flattening and coiling machine is a highly efficient, automated device that integrates copper wire shaping, flattening, and automatic coiling.

4. Designed Capacity: 100-180 units/hour.

5. Applications: Coreless motor coils, precision inductor coils, micro-transformers, medical or military micro-wire assemblies, and high-frequency winding inductor products.

Application

1.Coreless motors, micro motors, headphone coils, small precision coils, etc.

2.Focused on high-precision, high-efficiency, miniaturized, and low-inertia motors.

3.Coreless motors are widely used in aerospace, medical devices, precision instruments, industrial robots, humanoid robots, and some consumer electronics.

Features

1. Integrated: Integrates flattening, shaping, and coiling into one machine, reducing intermediate steps.

2. Highly consistent finished product: Utilizes a high-precision motor and displacement sensor to control flattening thickness and coiling diameter, with an accuracy of ±0.01mm.

3. Modular structure: Quickly change molds to accommodate varying wire and coil diameters.

4. Easy operation: Intelligent human-machine interface.

5. Compatible with automated production lines: Scalable integration with automatic feeding systems, winding machines, and inserting machines for complete line automation.

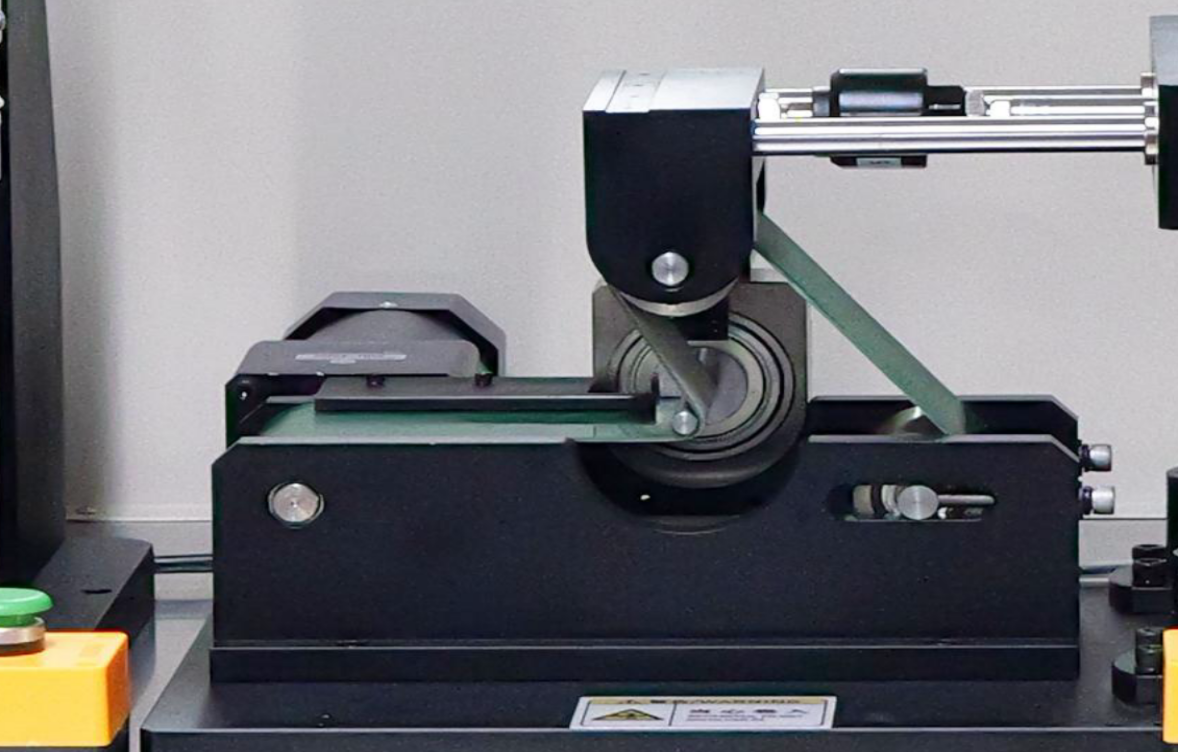

Product Details

Specifications

Item/Model	PNS - YJ5130
Max. Coil Size (mm)	Height: 40mm Length: 100mm / Diameter: 7 - 25mm
Max. Spindle Speed (rpm)	500rpm
Shaft Rotation Angle	360 degrees per circle, setting unit: 0.1 degree
Shaft Stopping Accuracy	±1°
Applicable Wire Diameter (mm)	0.05mm - 0.25mm
Shaft Movement Transfer Speed (mm/sec)	350mm/sec
Control Method	CNC 5 - axis Control Board (Independently Developed)
Storage Method	RAM + FLASH Storage
Power Supply Voltage	Single - phase three - wire system
Power Supply Voltage	220V, 50HZ
Power Consumption (KW)	0.5KW
Compressed Air Pressure (MPa)	0.5MPa
Dimensions LWH (mm)	1400mm800mm1500mm
Weight	260Kg
