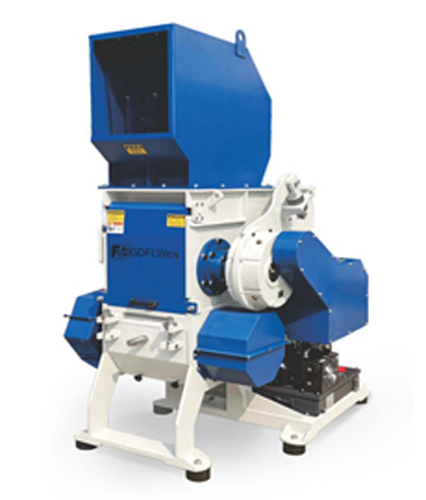

Shredder-Crusher combined

Product Introduction

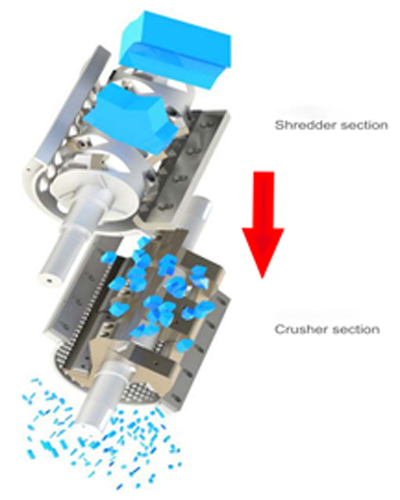

1.This series integrates a shredder and crusher in one unit, transforming bulk material into 40mm chunks and 10mm recycled pellets, ensuring the pellets are ready for immediate reuse.

2.The streamlined design eliminates the need for conveyors, shredders, or crushers, saving you 65% of valuable space in your facility.

 Features

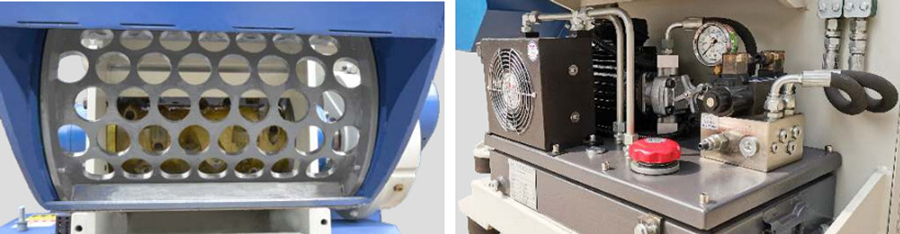

Screen aperture optional                                                               The hydraulic station push box ensures material fits rotor better

Recommended Configurations

1. Aggregation System – Rapidly recovers recycled pellets, reducing labor and air pollution.

2. Conveyor Belt – Continuously feeds material, adjusting feed based on the shredder/crusher's operating status.

3. Metal Detector – Automatically stops upon metal detection, preventing foreign matter from entering and damaging subsequent equipment.

Product Advantages

1. Space-saving and cost-effective, compared to purchasing a separate shredder or crusher and conveyor belt.

2. Directly produces the target particle size.

3. Slide-type pusher box facilitates long-term continuous operation and eliminates material accumulation.

4. Automatic overload protection prevents severe overload and jamming.

5. The shredder blades are made of DC53 material, and the crusher blades are made of D2 material.

6. The shredder and crusher are independently driven for better system control.

7. Electrical control components are from international brands such as Siemens and Schneider.

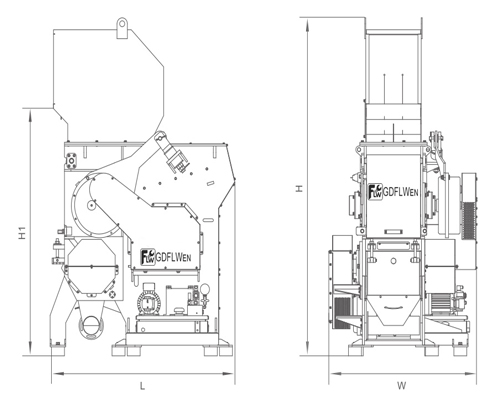

Dimensions

Specification
