Solid waste recycling equipment

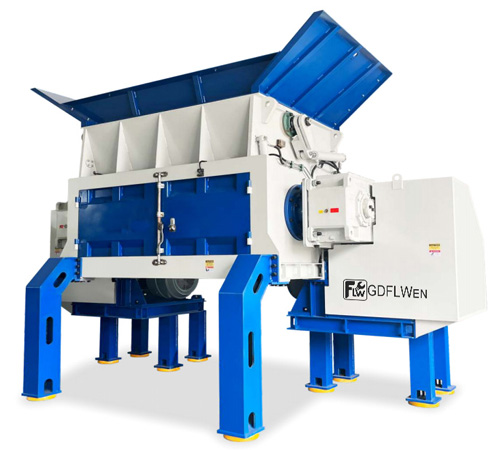

Heavy Duty Single Shaft Shredder

Crushing chamber volume：2.5
Rotor diameter(mm)：460
Rotor knife qty(pcs)：88
Counter knife qty(pcs)：6
Product description:
INQUIRY

Product Introduction

1.Suitable for difficult-to-crush materials and high-capacity applications.

2.Compact structure, openable chassis, easy maintenance and screen replacement, and swing arm mechanism ensures zero leakage during operation.

3.Equipped with a swing arm and PLC automatic control system, it continuously pushes the material toward the cutter drum and quickly returns it.

4.The maximum production capacity can reach 15000KG per hour.

Applications:

Plastic bottles, plastic films, leather, waste cloth, sponges, paper (bulk or baled)

Solid industrial waste and production tailings

Pretreatment of refuse - derived fuel (RDF/SDF/SRF)

Industrial waste RDF pellets burning stick

Features

1. Unique blade arrangement ensures higher cutting efficiency for lightweight materials.

2. Upward-opening maintenance door allows for easy blade replacement and cleaning of the chamber.

3. Circular, sliding feed prevents material leaks and jams during operation.

4. Intelligent PLC system automatically adjusts the pusher arm speed based on the blade roller load and adjusts the pusher arm's progress based on the material type.

5. Hexagonal screen provides structural reinforcement while ensuring the shredder meets the required particle size.

6. CE certified.

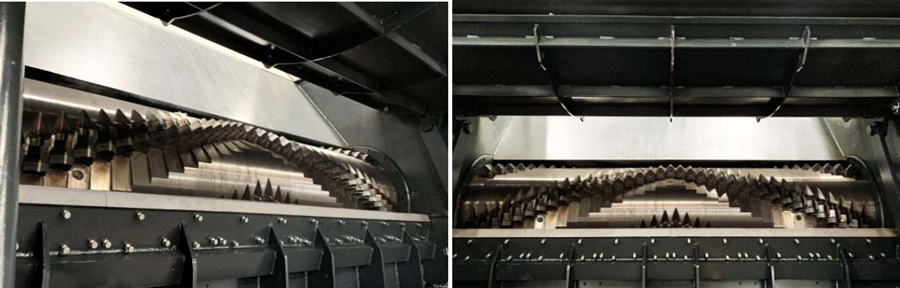

Unique power distribution ensures higher cutting frequency. Imported high-hardness alloy steel ensures long service life.

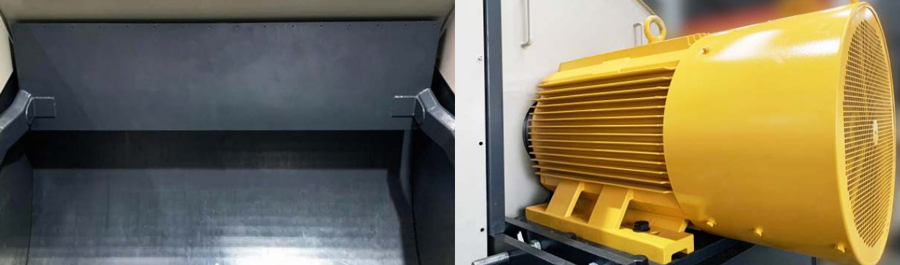

Arc-shaped slide feeding, feed arm adjusts its stroke. Single or dual motor high-speed drive.

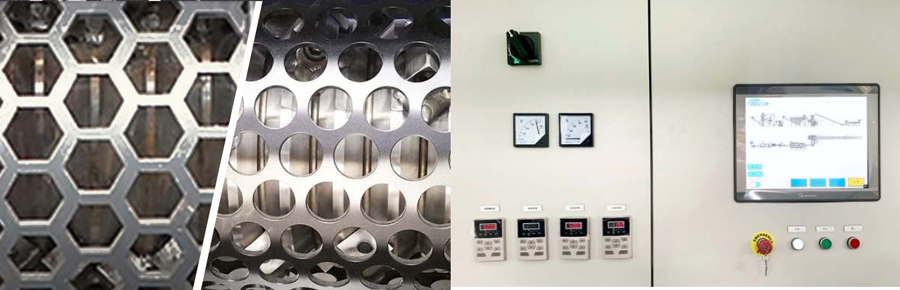

Optional round / hexagonal screen, screen aperture can be customized. Load monitoring system makes shredding easier.

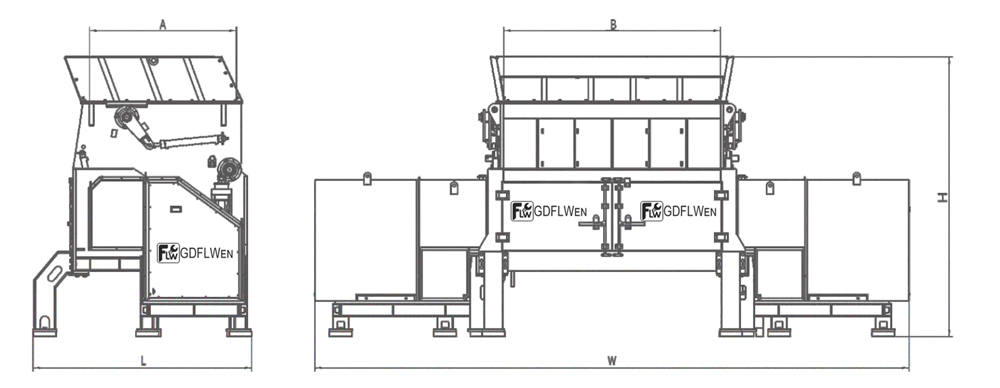

Dimensions

Specification

Item / Model	M4150	M4200	M6170	M6220	M8180	M8300
A×B(mm) Hopper opening	1700×1500	1700×2000	1700×1700	1700×2200	1970×1800	1970×3000
Crushing chamber volume(m³)	2.5	3.3	2.7	3.6	3.0	5.0
Rotor diameter(mm)	460	460	600	600	800	800
Rotor knife qty(pcs)	88	118	94	130	106	150
Counter knife qty(pcs)	6	8	6	8	8	12
Motor power(kW)	90	110	132	180	220	250-500
Hydraulic drive capacity(kW)	5.5	7.5	7.5	11	11	11
L×W×H Dimension(mm)	2550×3750 ×2750	2550×4350 ×2750	2750×4200 ×2900	2750×5640 ×2900	2850×5200 ×3700	2850×6950 ×3700
Screen opening(mm)	Customizable
Weight(kg)	13000	15500	14500	21000	22000	30000 RDF particlesBurning stickBurning stickBurning stickBurning stick
