Solid waste recycling equipment

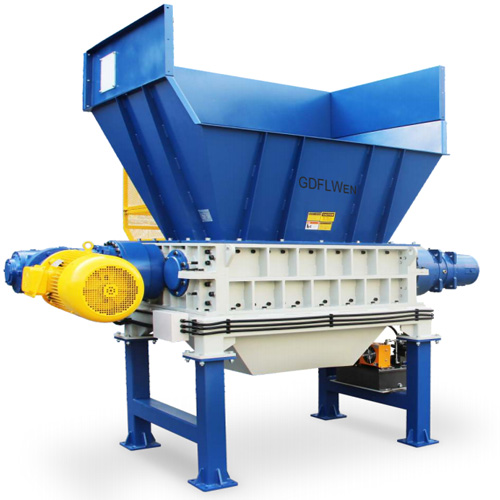

Small double-shaft shredder
- Crushing chamber (mm) A×B ：600×460
- Motor power (kW)：5.5+5.5
- Rotor diameter (mm)：300
- Blade thickness (mm)：20
- Product description:
Product Introduction
1. Compared to single-shaft shredders, this series offers lower speeds, greater torque, and higher efficiency.
2. Widely used for the recycling of industrial waste, municipal solid waste, and other mixed waste.
3. Its compact structure and split-type chassis and bearing housing facilitate easy maintenance.
4. Often used for primary crushing, the particle size is determined by the thickness of the blades.
Applications
1. Derivative Waste: Municipal solid waste, industrial waste, wood waste, industrial waste paper, tires, plastics, carpets, etc.
2. Metal Materials: Aluminum, non-ferrous metals, non-ferrous metals, metal drums, used cars, etc.
3. Electronics and Electrical: Electronic waste, electronic equipment, used home appliances, etc.
4. Plastics: Chemical drums, large plastic pieces, films, etc.
Features

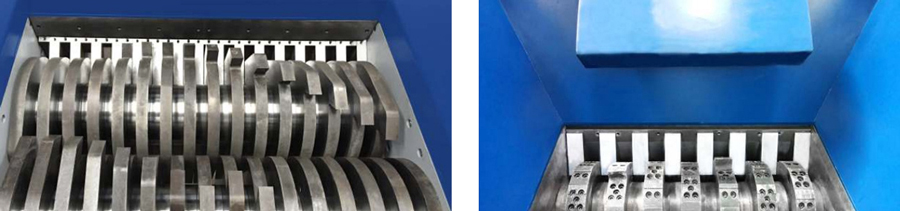

1. Both the moving and fixed blades are cast from alloy steel.
2. Thick frame material withstands high torque.
3. Easy adjustment, low maintenance, and economical and durable.
4.This device does not contain a screen and is often used as a primary crusher. The particle size depends on the thickness of the blade.
Two independent motors plus a reducer produce high torque. Pushing device (optional) assists in pushing materials and increases production.

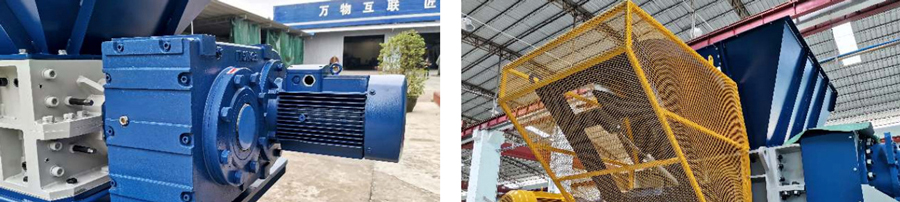

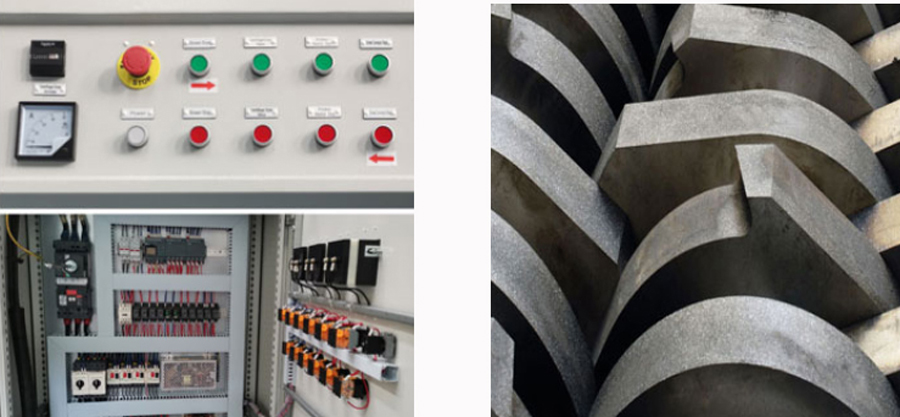

Main components

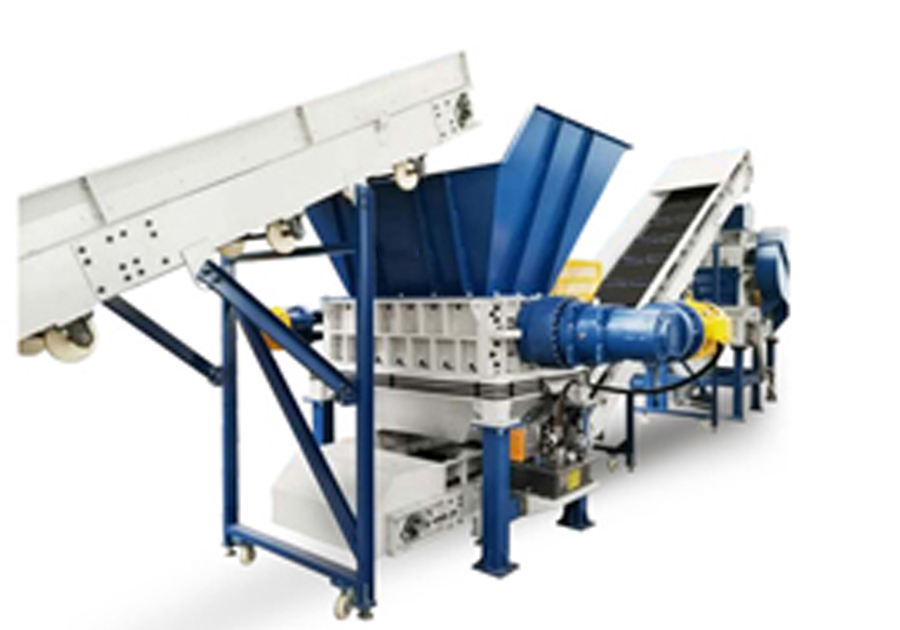

Crushing production line
A double-shaft shredder combined with a single-shaft shredder and a conveyor belt can form a recommended shredding line

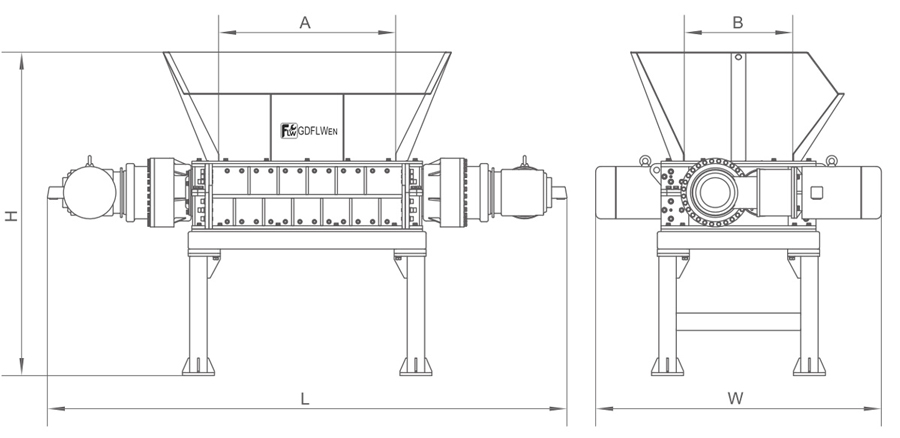

Dimensions
Specification
|
Item / Model |
DS260 |
DS280 |
DS380 |
DS3120 |
|
A×B Crushing chamber (mm) |
600×460 |
800×460 |
800×720 |
1200×720 |
|
Rotor diameter (mm) |
300 |
300 |
450 |
450 |
|
Blade thickness (mm) |
20 |
20 |
20/40 |
20/40 |
|
Rotor knife qty (pcs) |
30 |
40 |
40/20 |
60/30 |
|
Motor power (kW) |
5.5+5.5 |
7.5+7.5 |
15+15 |
22+22 |
|
L×W×H Dimension (mm) |
2500×1180×1830 |
2740×1180×1830 |
3060×1850×2230 |
3580×1970×2230 |
|
Weight (kg) |
2000 |
2250 |
4300 |
5800 |
