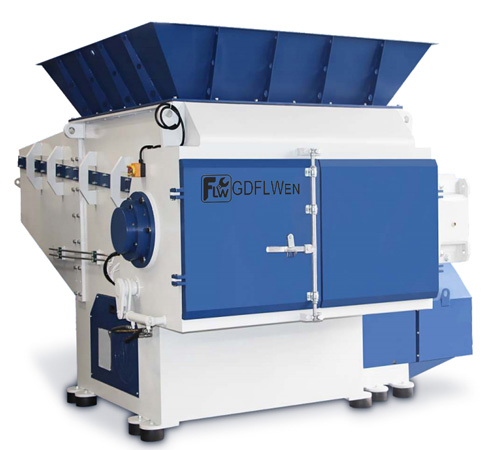

Large Single Shaft Shredder

Crushing chamberAxB(mm)：1400x1500
Rotor diameter(mm)：450
Rotor knife qly(pcs)：88
Counter knife qty(pcs)：6
Product description:
INQUIRY

Product Introduction

1. Designed for shredding extra-large and high-hardness materials.

2. The tilted feed mechanism and oversized chassis ensure higher and more stable output.

3. The tilted feed mechanism and large chassis design make equipment maintenance quick and easy.

Applications

Plastics, die head materials, rubber head materials, nozzle materials, rubber blocks, plastics, films, agricultural films, ground films, PP woven bags, ton bags, stretch film, greenhouse films, pipes, PE bottles, daily plastic bottles, plastic tables and stools, foam, etc.

Plastic scraps, wires and cables, PET bottles, shredded and compressed for recycling

Features

1. Automatic overload protection prevents machine overload and jamming.

2. Main electrical control components utilize international brands such as Siemens and Schneider.

Main Components

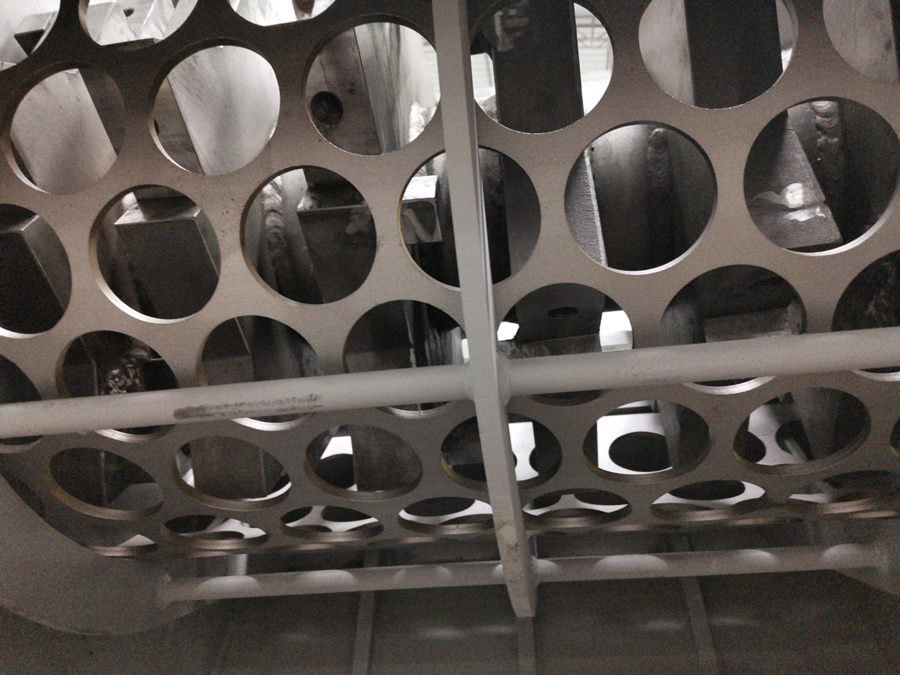

1. For film and woven bags, the screen aperture is available in 20-40mm.

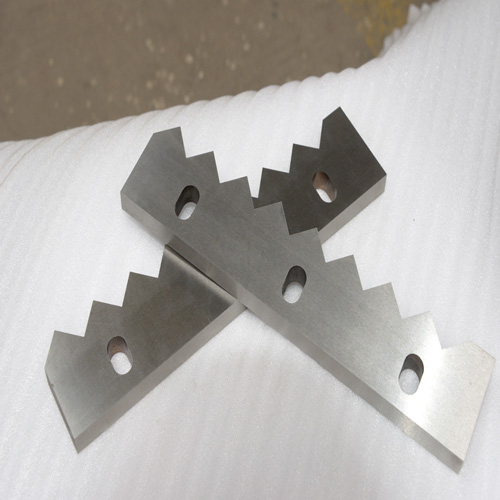

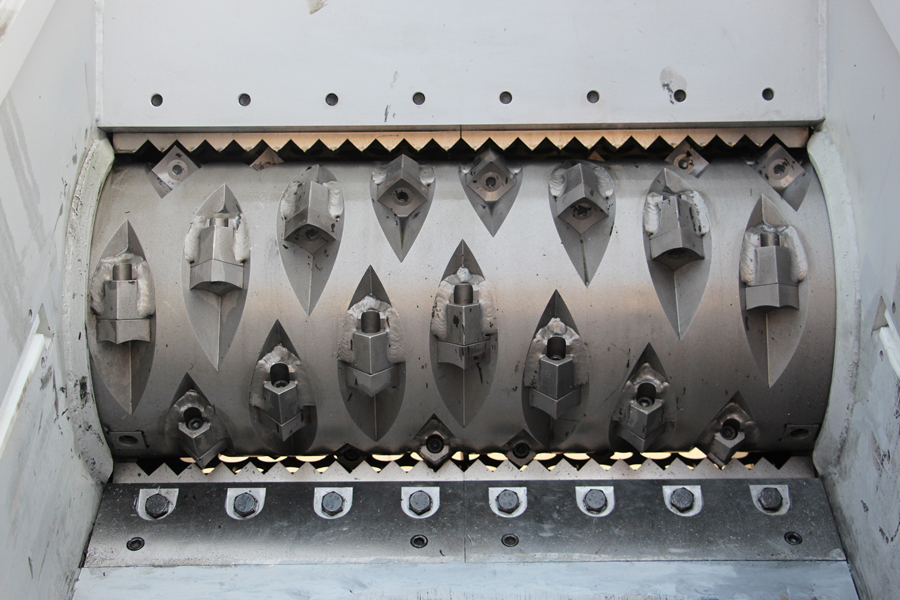

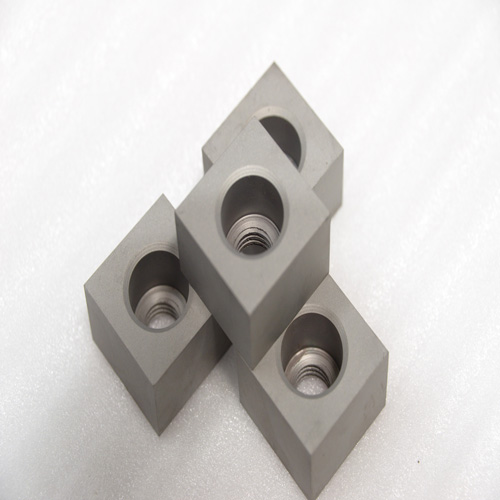

2.The rotating blade is made of DC53 alloy, and the fixed blade is made of D2 alloy. The rotating blade can be used diagonally before replacement.

3.fixed blade/rotating blade

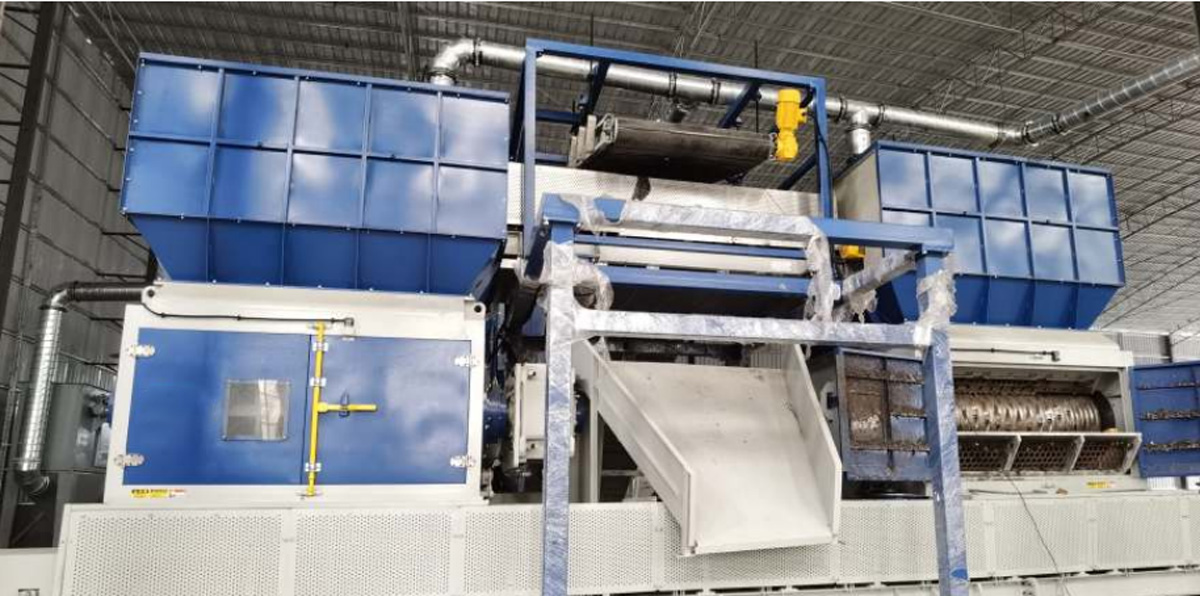

Simple crushing line

A single-shaft shredder, a double-shaft shredder and a conveyor belt can form a simple shredding line

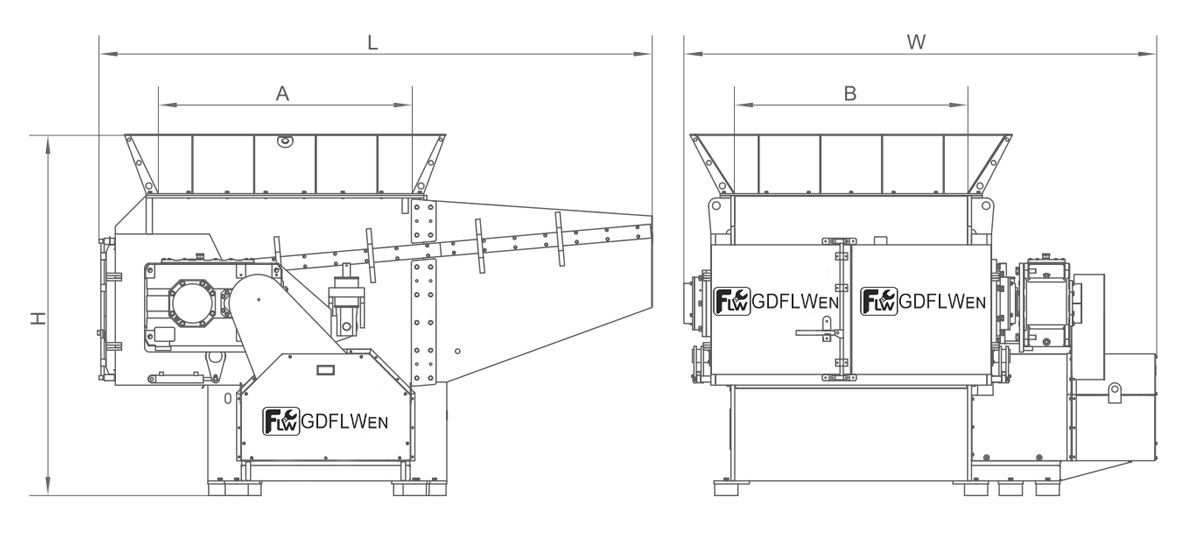

Dimensions

ltem/Model	T4150	T4200	T6170	T6220	T8180	T8240
AxB(mm)Crushing chamber	1400x1500	1400x2000	1500*1700	1500*2200	1580*1800	1580*2400
Rotor diameter(mm)	450	450	600	600	800	800
Rotor knife qly(pcs)	88	118	100	130	106	142
Counter knife qty(pcs)	6	8	6	8	8	8
Motor power(kW)	90	55+55	132	90+90	90+90	132+132
(kW)Hydraulic drive capacity	7.5	7.5	11	15	11	15
LxWxHDimension(mm)	3550x3100x2400	355045002400	380032002800	380047002800	420043003400	420049003400
Maximum output (kg/h)	3000	4000	4700	5800	6500	8500
Weight (kg)	11000	14800	13800	18000	16000	20000
