Solid waste recycling equipment
Hammer Mill
- Width of cutting chamber (mm)：910
- Screen opening (mm)：Ø3 / Customizable
- Motor power (kW)：75-110
- Hydraulic drive capacity (kW)：1.5
- Product description:
Product Introduction
It is used for recycling wood, glass and various types of waste lithium batteries and battery waste, including power, energy storage and 3C single lithium-ion batteries, covering common specifications of batteries such as cylindrical, soft-pack and square, as well as waste materials such as defective batteries and waste electrodes.
Applications
1. Lithium battery recycling, electronic waste recycling.
2. Glass recycling, biomass fuel production, feed production, wood recycling, etc
1. The housing is well sealed and protected to prevent the leakage of hazardous substances.
2. Nitrogen is injected into the crushing chamber to crush live lithium batteries, reducing the risk of combustion and explosion.
3. The spindle's dynamic balancing accuracy exceeds G2.5, ensuring more stable operation with reduced vibration and noise.
4. Automatic overload protection and reverse function prevent overload and jamming.

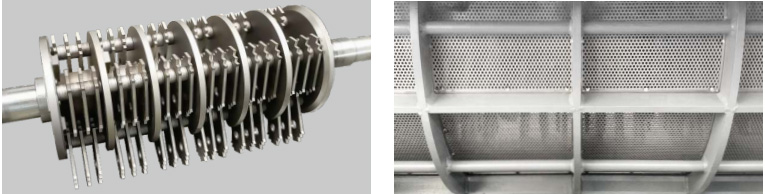

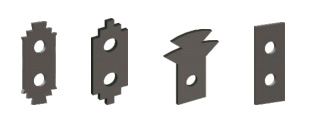

Hammers can be customized to suit carbon steel, cast iron, Hardox steel, tungsten steel and other materials
The knife roller is highly wear-resistant, hard, balanced, and safe.
The screen aperture can be customized.

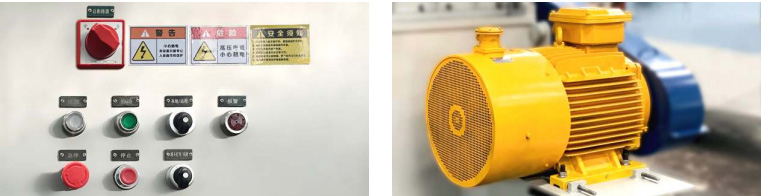

The clutch automatically disengages when overloaded, and is equipped with an energy-saving motor

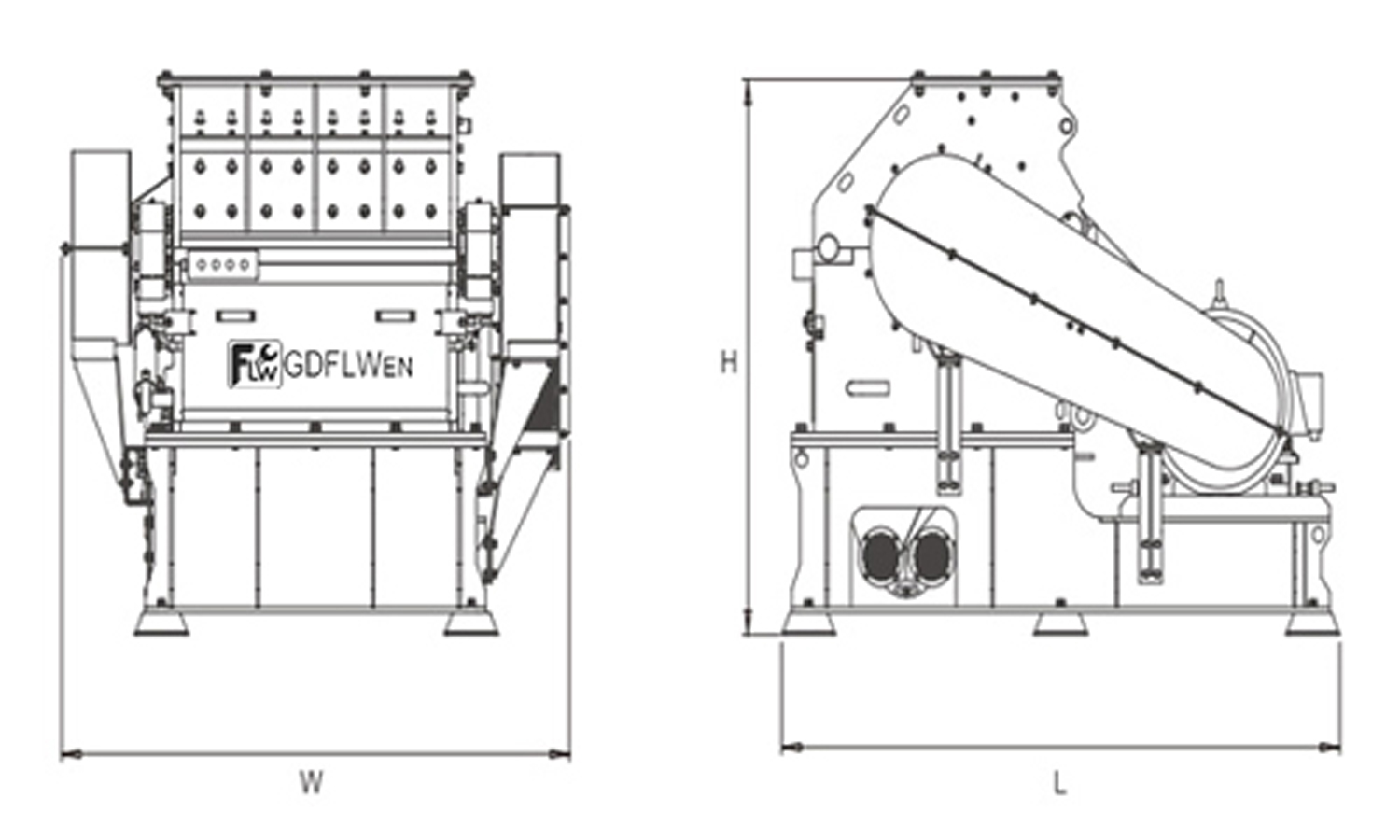

Dimensions
|
Item / Model |
MH6090 |
MH60120 |
|
Width of cutting chamber (mm) |
910 |
1210 |
|
Rotor diameter (mm) |
610 |
610 |
|
Blade thickness (mm) |
10 |
10 |
|
Screen opening (mm) |
Ø3 / Customizable |
Ø3 / Customizable |
|
Hammer blade qty (pcs) |
72 |
96 |
|
Motor power (kW) |
75 - 110 |
90 - 132 |
|
Hydraulic drive capacity (kW) |
1.5 |
1.5 |
|
Rotor speed (RPM) |
800 - 2800 |
800 - 2800 |
|
L×W×H Dimension (mm) |
1970×1790×1500 |
1970×2100×1500 |
|
T/H Throughput |
1.2 - 1.8 |
2 - 2.5 |
|
Weight (kg) |
3830 |
3990 |
