Solid waste recycling equipment

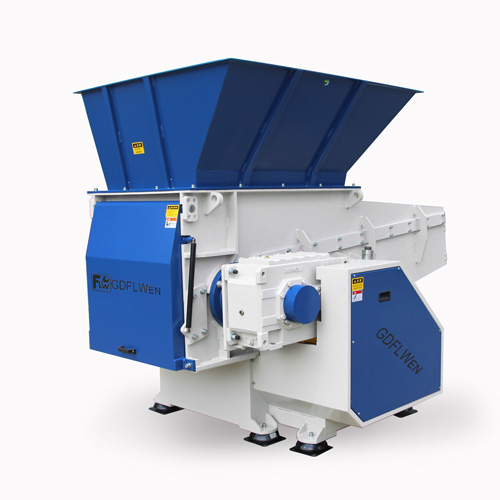

Small single-shaft shredder

Crushing chamber(mm)：500x580
Screen opening(mm)：∅40
Motor power(kW)：18.5
Hydraulic drive capacity(kW)：1.5
Product description:
INQUIRY

Product Introduction

1. Mainly processes high-hardness and high-toughness rubber materials, plastic products, wood, industrial waste paper, etc.

2. Low speed, high torque, and compact structure ensure stability and durability in harsh industrial environments.

Applications

Plastic rubber tips, plastic pipes, plastic sheets, PE films, PP woven bags, PET bottles, industrial waste paper, wooden pallets, circuit boards, aluminum profiles, copper profiles, wires and cables, etc.

Before and after photos of plastic film, wood, and electronics.

Features

1. Automatic overload protection prevents machine overload and jamming.

2. Main electrical control components utilize international brands such as Siemens and Schneider.

Main Components

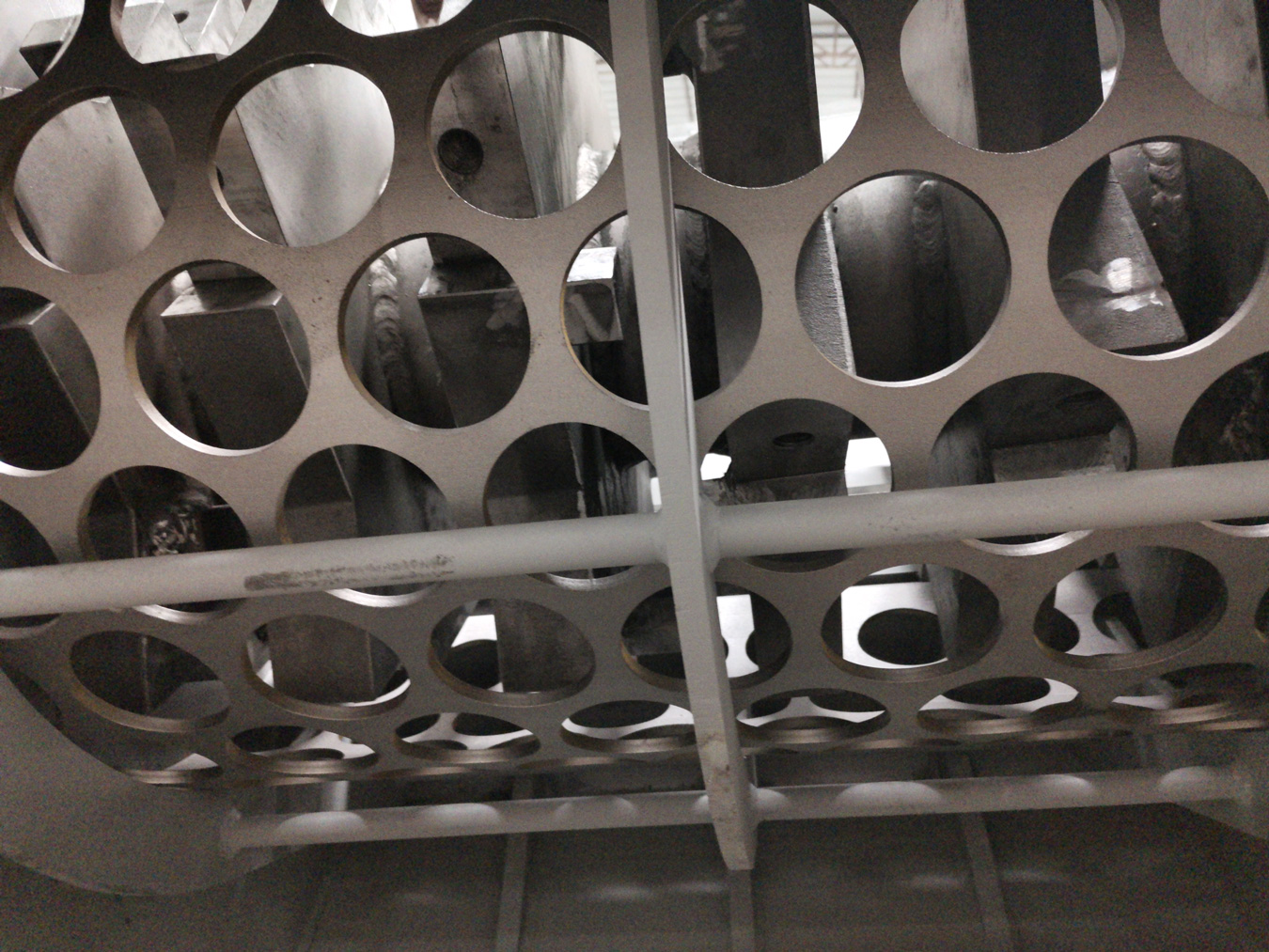

1. For film and woven bags, the screen aperture is available in 20-40mm.

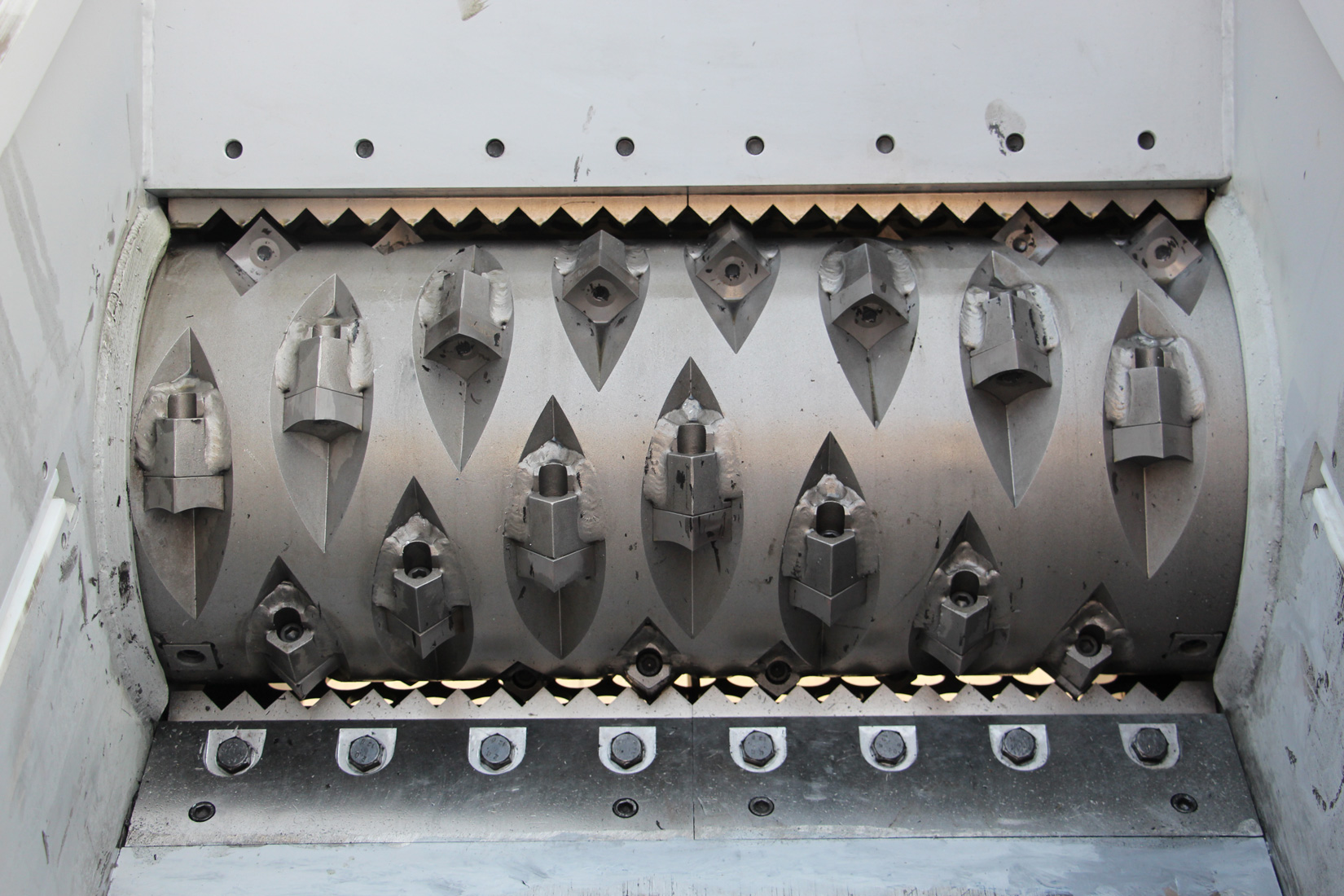

2.The rotating blade is made of DC53 alloy, and the fixed blade is made of D2 alloy. The rotating blade can be used diagonally before replacement.

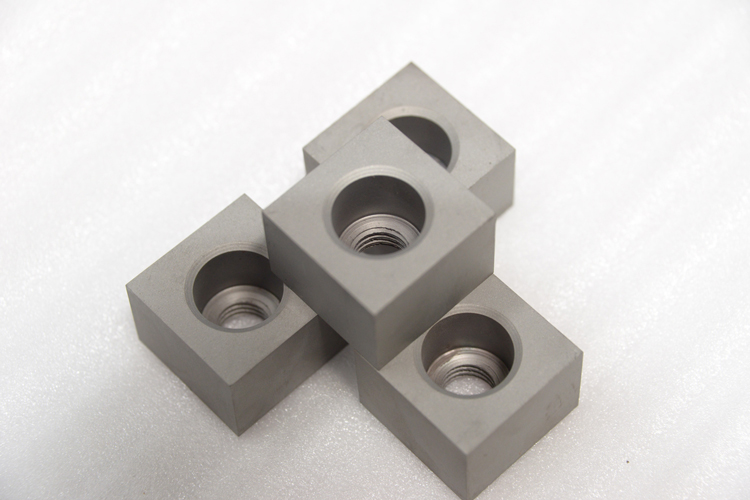

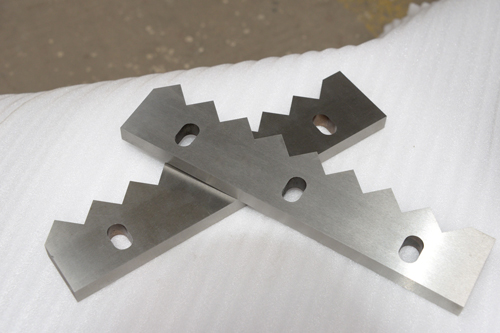

3.The fixed blade/The rotating blade

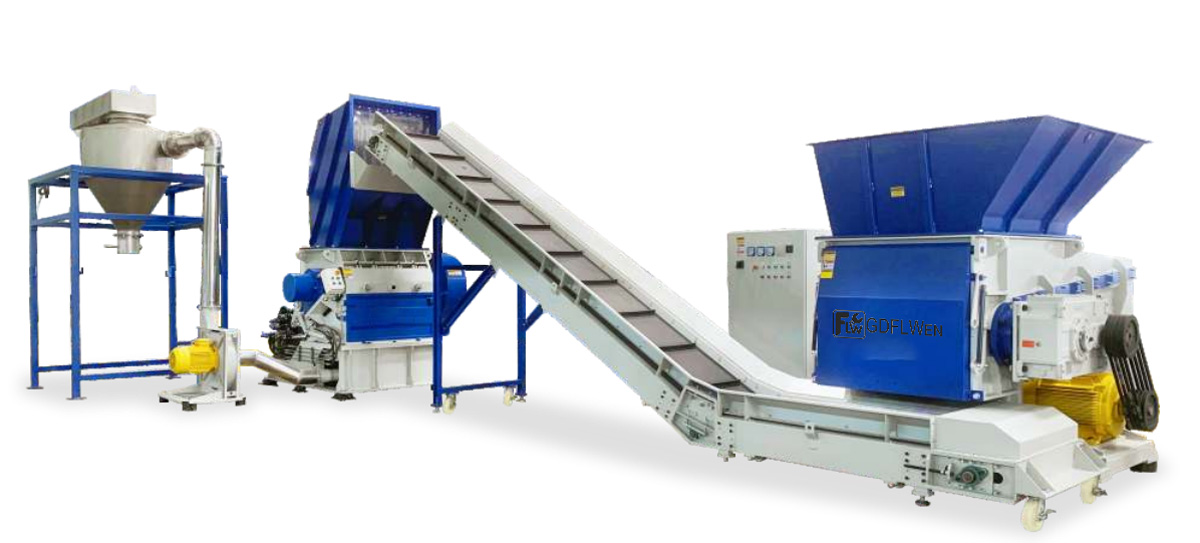

Simple crushing production line

A single-shaft shredder, combined with a conveyor belt and a crusher, can form a simple crushing line.

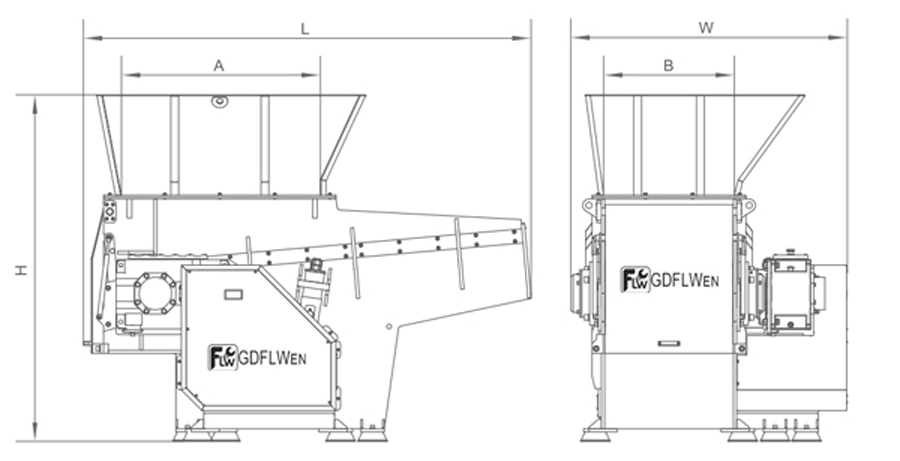

Dimensions

Item/Model	P260	P380	P3100	P3120	P3150	P3150
AxB Crushing chamber(mm)	500x580	850x800	850x1000	850x1200	850x1400	850x1400
Rotordiameter(mm)	250	400	400	400	400	400
Rotor knife qty(pcs)	26	38	52	58	82	82
Counter knife qty(pcs)	4	D	4	6	6	6
Screen opening(mm)	∅40	∅40	∅40	∅40	∅40	∅40
Motor power(kW)	18.5	37	45	55	75	75
Hydraulic drive capacity(kW)	1.5	3.7	3.75	5.5	5.5	5.5
LxWxH Dimension(mm)	1760x1300x1850	2850x1760x2210	2850x1960x2220	2850x2560x2330	2850x2760x2330	2850x2760x2330
Maximum output(kg/h)	500	1200	1600	2000	2200	2200
Weight(kg)	1750	4150	4308	5300	5900	5900
