Solid waste recycling equipment

Large double-shaft shredder

Crushing chamber (mm)A×B ：1300×995
Motor power (kW)：37+37
Rotor diameter (mm)：520
Blade thickness (mm)：50/75/100
Product description:
INQUIRY

Product Introduction

1. It can meet the needs of waste recycling in various solid waste industries and is suitable for shredding thick, difficult-to-crush, or large, hollow materials. Examples include used household appliances, rubber tires, large blue barrels, and used cars.

2. It is typically used as a primary shredder.

Applications

1.Derivative Waste: Municipal solid waste, industrial waste, wood waste, industrial waste paper, tires, plastics, carpets, etc.

2.Metal Materials: Aluminum, non-ferrous metals, non-ferrous metals, metal drums, used cars, etc.

3.Electronic and Electrical Equipment: Electronic waste, electronic equipment, used home appliances, etc.

4.Plastics: Chemical drums, large plastic pieces, films, etc.

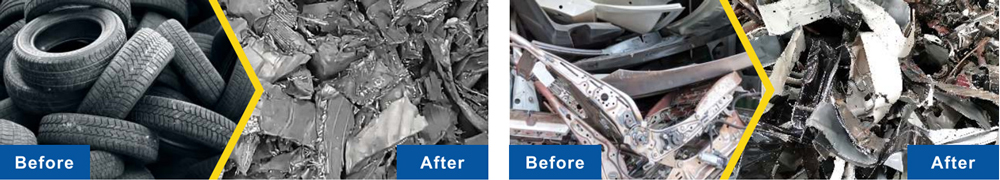

Shredding-and-recycling-of-waste-tires-and-car-shells

Features

1. Both the moving and fixed blades are cast from alloy steel.

2. The frame is thick and can withstand high torque.

3. Easy adjustment, low maintenance, and economical and durable.

Dual-axis machine tool body with optional blade thickness. Removable blade to reduce tool changing time

Two independent motors plus a reducer produce high torque. Pushing device (optional) assists in pushing materials and increases production.

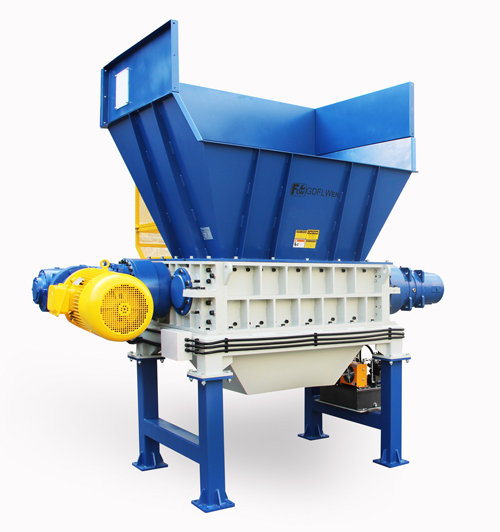

Main components

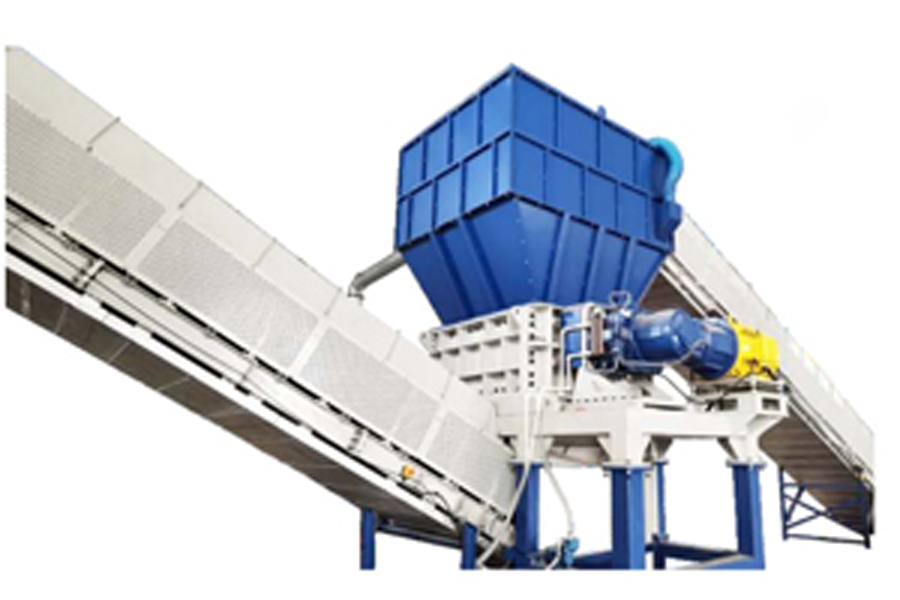

Crushing production line

Double-shaft-shredder-production-line

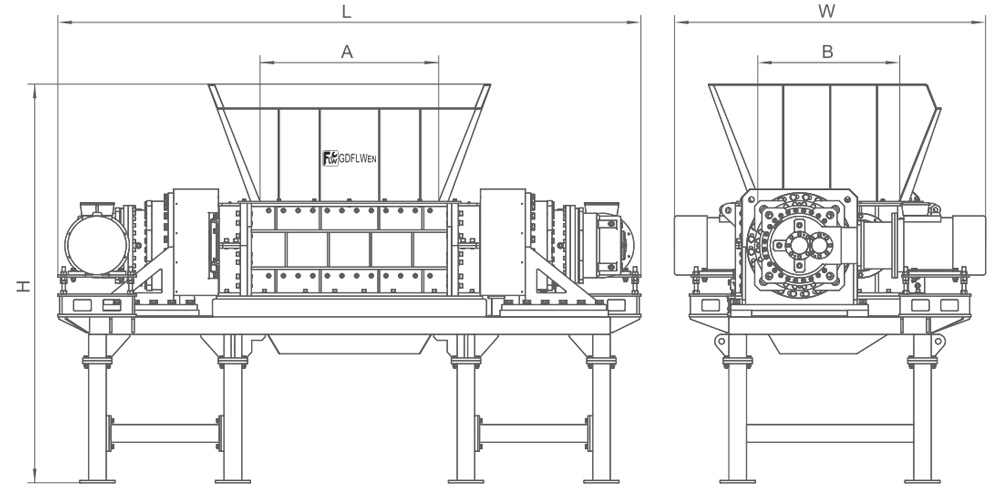

Dimensions

Specification

Item / Model	DL4130	DL4150	DL5150	DL5180	DL6150	DL6180	DL6220
A×B (mm) Crushing chamber	1300×995	1500×995	1500×1150	1800×1150	1500×1450	1800×1450	2200×1450
Rotor diameter (mm)	520	520	620	620	750	750	750
Blade thickness (mm)	50/75/100	50/75/100	50/75/100	50/75/100	50/75/100	50/75/100	50/75/100
Rotor knife qty (pcs)	26/17/13	30/20/15	30/20/15	36/24/18	30/20/15	36/24/18	44/29/22
Motor Power (kW)	37+37	45+45	75+75	90+90	55+55	90+90	110+110
L×W×H Dimension (mm)	4590×2210×2600	4890×2210×2600	5150×2270×2600	6340×2610×4000	6993×3045×4000	7110×3342×4000	7986×3284×3760
Weight (kg)	9500	11500	17400	20500	22000	26800	33700
