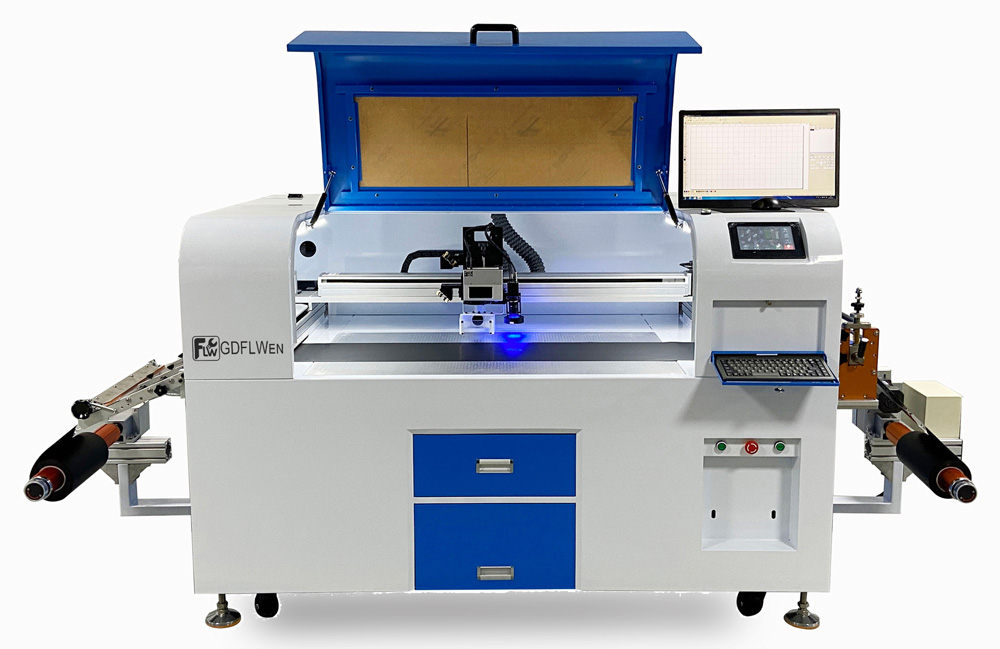

Dual-flying galvanometer laser cutting machine

Product Introduction

1. Two high-speed galvanometer systems are positioned on a large-format platform. Through beam segmentation and synchronized flight compensation, this device achieves large-area, high-speed, and high-precision laser cutting.

2. It is particularly suitable for continuous processing of flexible rolls and large-format membranes.

3.Application industries: consumer electronics, FPC flexible circuit boards, display/photoelectric industry, automotive electronics, lithium battery new energy.

Laser cutting sample

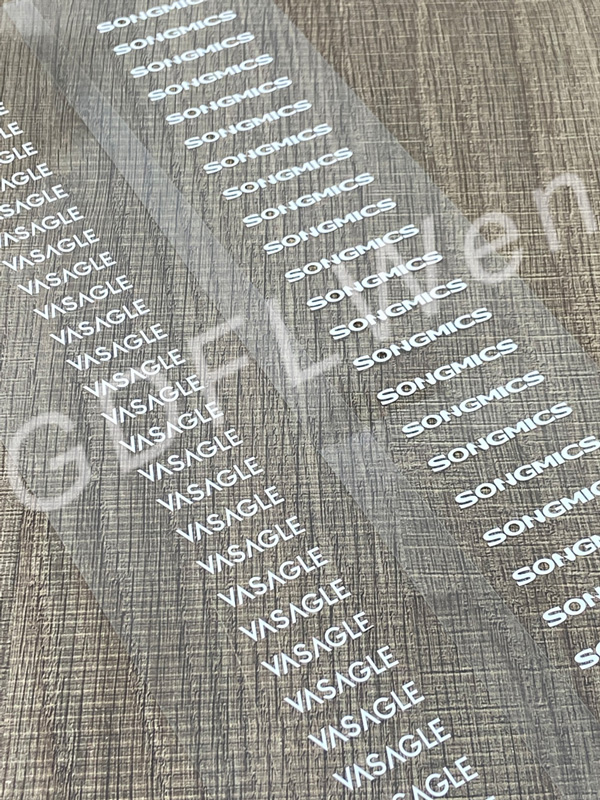

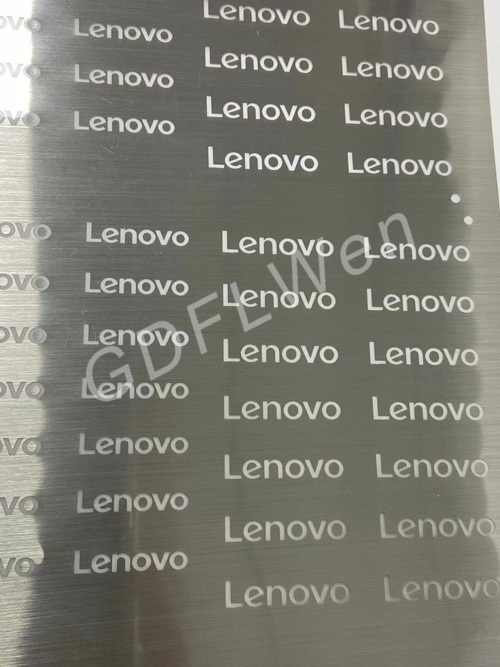

LOGO cutting sample

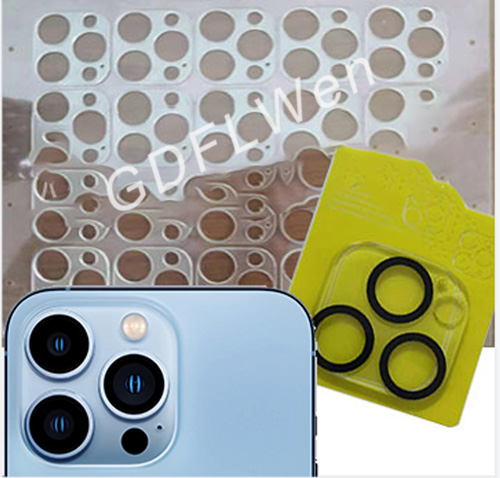

mobile phone camera protective film

Industry Applications

Industry	Application Examples
Consumer Electronics	Cutting of mobile phone lens protective films, black - and - white functional films, conductive films, dimming films, isolation films
FPC Flexible Circuit Boards FPC	Laser cutting of PI films, FPC circuit cutting, window opening, Coverlay
Display/Optoelectronic Industry	Full - width precision cutting of backlight module films, diffusion films, brightness enhancement films, reflective films, PET films
Automotive Electronics	Cutting of central control display films, HUD functional films, vehicle - mounted functional films
Lithium - ion Battery New Energy	Slitting of lithium - ion battery separators, electrode thin films, and cutting of protective films (with the advantage of no mechanical contact)
Medical/Inductive Patches	Special - shaped die - cutting of medical inductive films, disposable electrode patches, and breathable films

Optional equipment configuration

Project	Options
Galvo Head	Dual - head Synchronous / Dual - head Asynchronous (Partitioned Tasks)
Laser Type	UV Laser / CO₂ Laser / Green Laser / Picosecond Laser
Working Area	Common: 600×600mm, 900×900mm, 1200×1200mm, Customized Larger Sizes Supported
Feeding System	Roll - to - Roll Feeding / Platform Loading / Automatic Rewinding
Dust Removal System	Built - in Air Extraction + Electrostatic Adsorption Device

Features

1. Fully automatic unwinding and rewinding, with precise visual alignment, easily handles small letters and complex patterns.
2. Coordinated control of dual independent galvanometer heads makes it suitable for large-format, high-speed operations.
3. Combined with roll-to-roll feeding, it enables 24-hour uninterrupted production.
4. Ultra-high-speed cutting capability: a single galvanometer scans at speeds of 6,000 to 10,000 mm/s. Dual heads work together, increasing overall efficiency by 1.5 to 2 times.
5. High-precision path control makes it suitable for processing fine patterns, sockets, and openings.

 Product Details

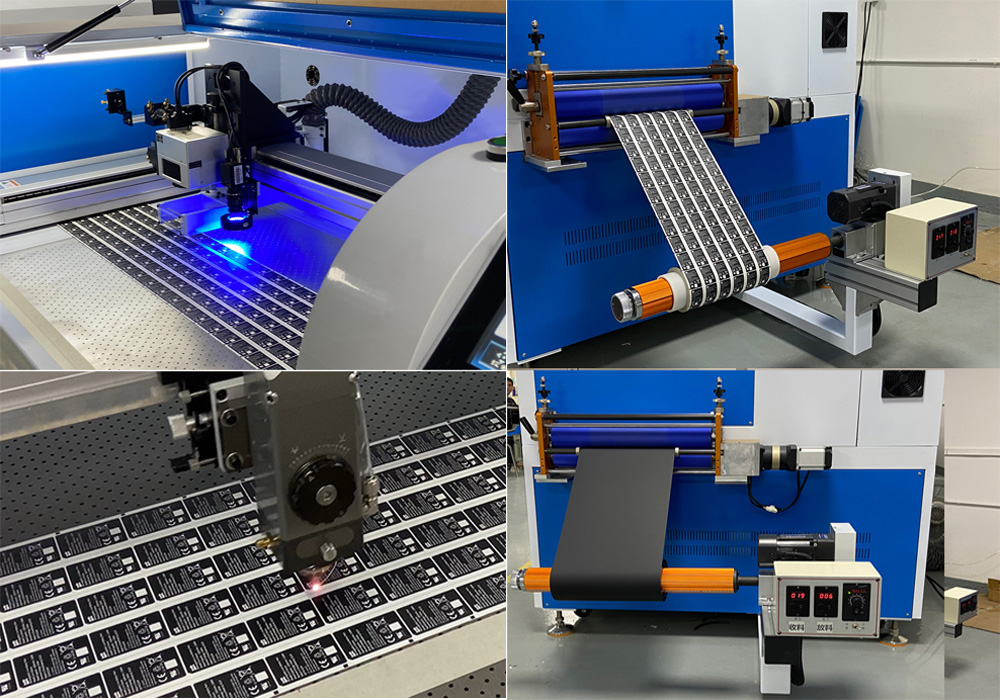

Roll-to-roll feeding and receiving systems
