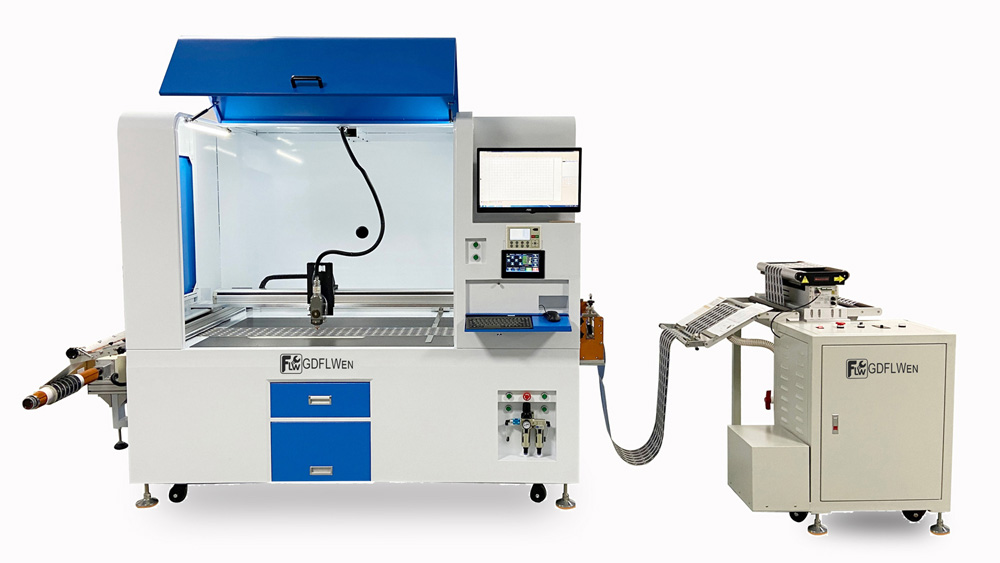

laser cutting machine

fiber laser cutting machine

Model：DH-600S-CCD
Laser Type：Imported CO2 Radio Frequency Laser Tube
Laser Power（W）：30W/60W/100W
Effective Cutting Range：600mm*600mm
Product description:
INQUIRY

Product Introduction

1. Customized specifically for the thin metal industry. Capable of precise marking and scribing on metal materials, cutting with fine slits and high precision, resulting in a clean surface.

2. Suitable for laser cutting of copper foil, aluminum foil, and iron, chromium, and aluminum.

3.Applications: advertising and signage industry, kitchen and bathroom products industry, electronic and electrical industry, lighting industry.

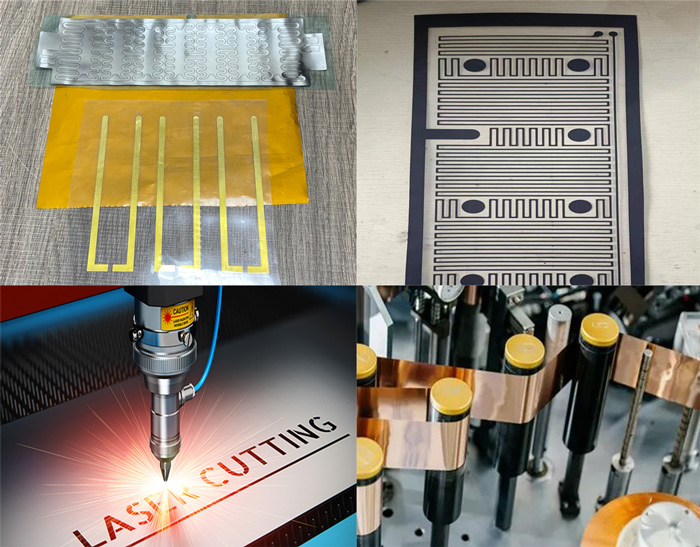

Laser cutting sample

Aluminum and copper foil cutting

Graphene aluminum film cutting

Sheet metal cutting

Lithium battery electrode cutting

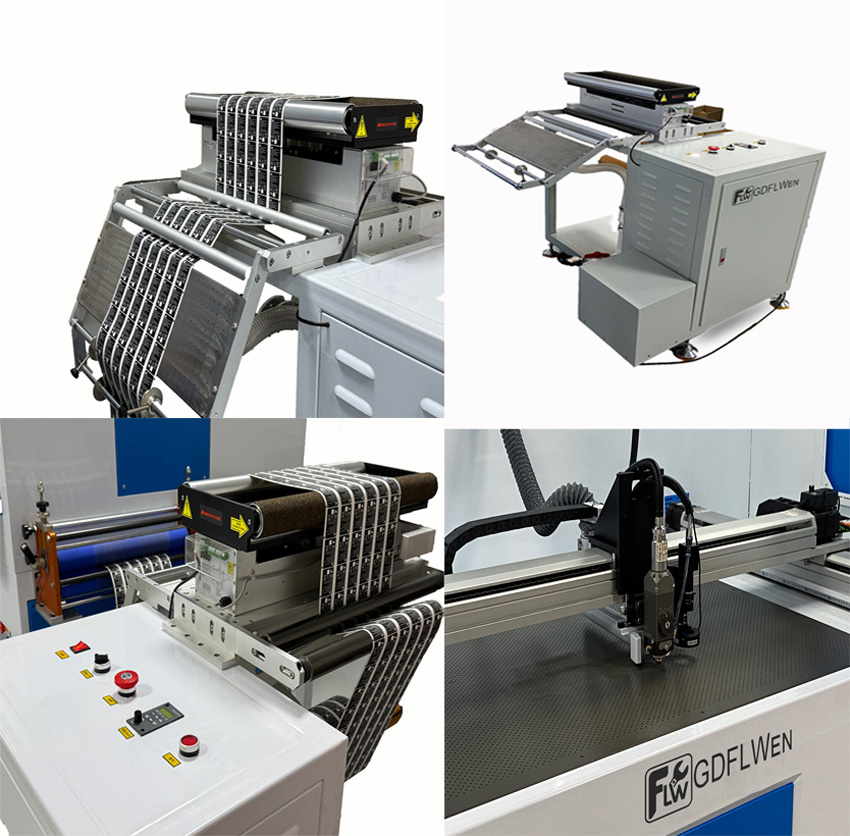

Main Components

1. Laser generator

2. Laser head

3. X- and Y-axis motion systems, servo drive motors, and precision screw components

Features

1. Strong cutting capability for highly reflective materials

2. Suitable for ultra-thin materials (<100μm)

3. Minimum heat-affected zone (HAZ)

4. Equipped with a high-precision galvanometer system

5. Automatic adsorption platform + roll-to-roll structure (optional)

6. CCD vision positioning system (optional)

7. Intelligent control software

Specification

Item/Model	DH-600S-CCD	DH-1060S-CCD	Remarks
Laser Type	Imported CO2 Radio Frequency Laser Tube	Imported CO2 Radio Frequency Laser Tube
Laser Power（W）	30W/60W/100W	30W/60W/100W
Effective Cutting Range (mm)	600mm*600mm	1000mm*600mm
Workbench Surface	Honeycomb/Aluminum Plate/Aluminum Knife Table	Honeycomb/Aluminum Plate/Aluminum Knife Table	Optional
Laser Wavelength （μm）	9.30μm	9.30μm
Cutting Precision(mm)	±0.03mm	±0.03mm
Repeat Positioning Precision (mm)	≤0.01mm	≤0.01mm
Minimum Cutting Line Width (mm)	≤0.08mm	≤0.08mm
Cutting Speed（mm/s）	≈3000mm/s	≈3000mm/s
Galvo Flying Cutting Depth（mm）	≤0.3mm (Film Material)	≤0.3mm (Film Material)
Conventional Focus Cutting Depth	≤18mm (PMMA)	≤18mm (PMMA)
