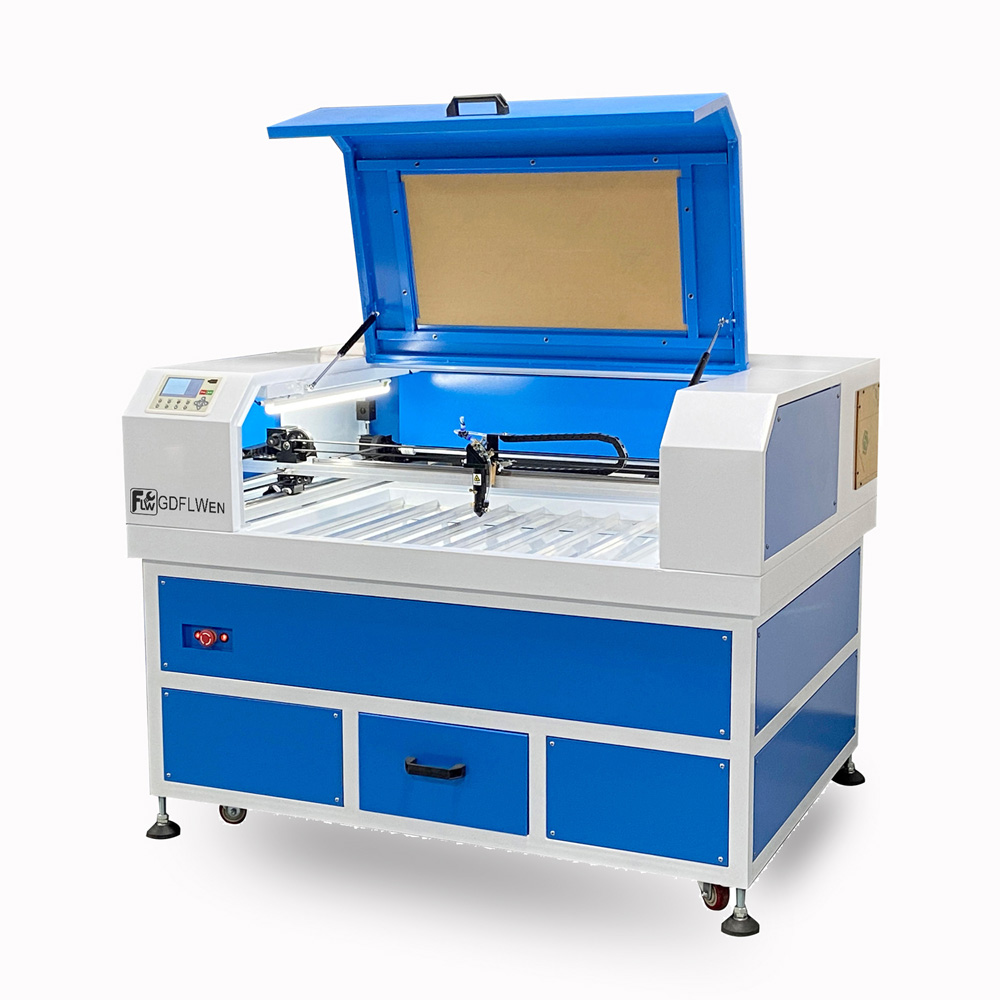

Large size high speed galvanometer laser cutting machine

Model:DH-9060
Laser Type:CO2 Radio Frequency Tube
Laser Power:30W/60W/100W
Effective Cutting Range:900mm*600mm
Product description:
INQUIRY

Product Introduction

1. Laser processing equipment that combines a high-precision scanning galvanometer system with a large-format motion platform.

2. Through high-speed beam spot deflection and platform linkage, it enables high-speed, high-precision, non-contact cutting of large-format materials such as flexible films, membranes, labels, and electronic materials.

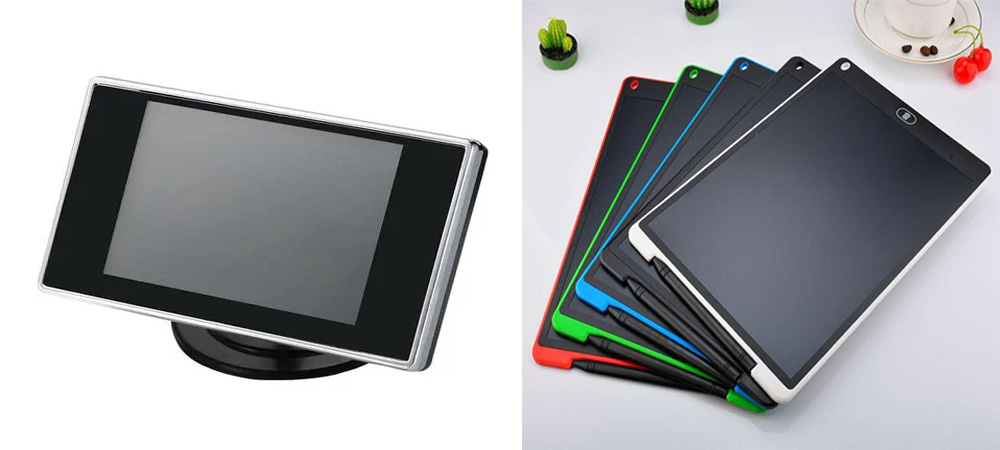

Laser cutting sample

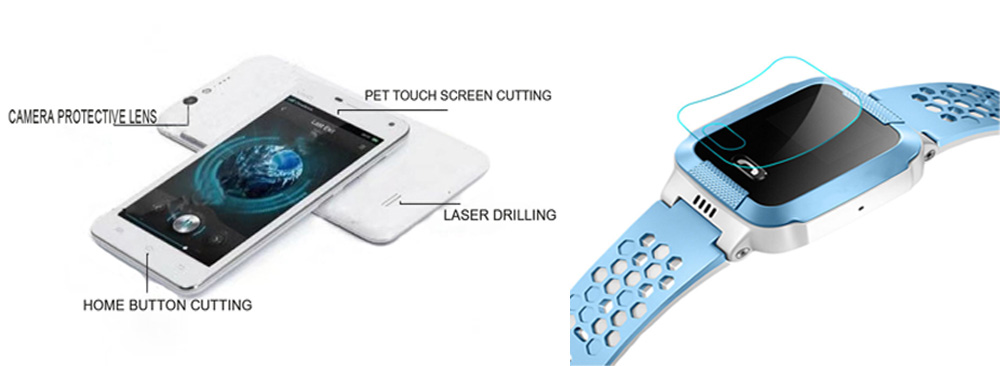

Mobile phone camera protective film, touch screen cutting and HOME button film cutting, etc.

Industry Applications

Industry	Application
Consumer electronics industry	Precision cutting of FPC flexible circuit boards, mobile phone functional films, camera protective films, mobile phone adhesives, etc.
Display/touch panel	PET diffusion film, reflective film, release film cutting
Packaging/labeling	High-speed precision cutting of self-adhesive labels, label films, electronic labels, laser anti-counterfeiting films, etc.
Automotive Electronics	Car display module, interior film, car protective film cutting
Medical industry	Medical PET film, electrode film, medical sensor film cutting
New Energy/Lithium Batteries	Battery separator, electrode film, PI film cutting, etc.
New Energy/Lithium Batteries	Battery separator, electrode film, PI film cutting, etc.

Features

1. Over six times faster than traditional laser cutting, suitable for cutting small holes and complex patterns.
2. Motion system utilizes dual-drive linear motors.
3. Equipped with a high-pixel CCD with automatic alignment.
4. Equipped with a high-precision galvanometer to ensure machining accuracy and corner processing.
5. Equipped with imported RF laser tubes for superior laser cutting quality.
6. Capable of roll-to-roll continuous cutting.

Optional Configurations (Customizable upon request)

1. Number of Galvanometer Heads: Single / Dual Flying Galvanometer Heads .

2. Laser Type: UV Laser / CO₂ Laser.

3. Feeding Method: Platform Feeding / Roll-to-Roll Automatic Feeding .

4. Precision Positioning: High-Pixel CCD / Autofocus System .

5. Dust Removal System: Electrostatic Adsorption + Exhaust System .

Specification

Item/Model	DH-9060	DH-1270	DH-2313	Remarks
Laser Type	CO2 Radio Frequency Tube	CO2 Radio Frequency Tube	CO2 Radio Frequency Tube
Laser Power	30W/60W/100W	30W/60W/100W	30W/60W/100W
Effective Cutting Range	900mm*600mm	1200mm*700mm	2300mm*1300mm	Customizable
Workbench Surface	Honeycomb/Aluminum Plate/Aluminum Knife Table			Optional
Cutting Precision	±0.01mm	±0.01mm	±0.01mm
Cutting Depth	≤0.3mm	≤0.3mm	≤0.3mm
Repeat Positioning Precision	≤0.01mm	≤0.01mm	≤0.01mm
Cutting Speed	≤3000mm/s	≤3000mm/s	≤3000mm/s	Depending on material
OEM	Roll-to-Roll	Roll-to-Roll	Roll-to-Roll
