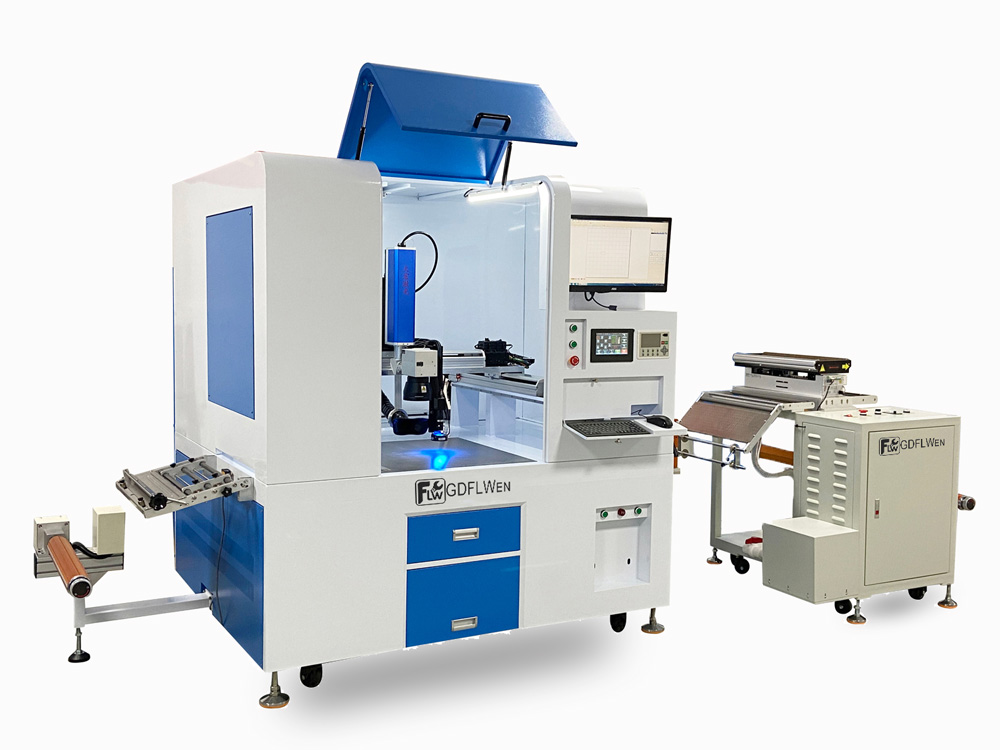

Film material laser cutting machine

https://youtu.be/cwqqHa9b6FE

Product Introduction

1.The equipment can perform one-time complex graphics cutting with high efficiency and high precision.

2.Application industries

Touch screen PET film cutting, LOGO sign cutting, nano silver film cutting, CCD visual positioning mobile phone front and back cover film cutting.

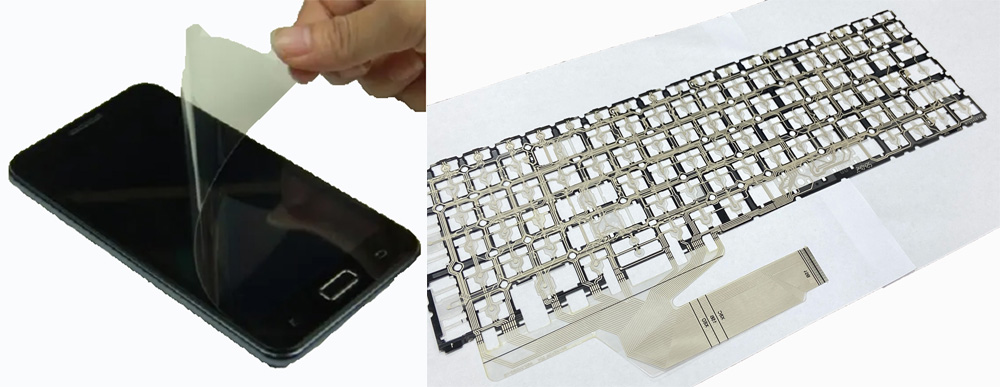

Laser cutting sample

PET film materials are typical materials suitable for laser precision cutting, and are especially widely used in the cutting of micro components such as FPC, camera modules, and display modules.

1. Fine kerf (<30μm) with clean edges.

2. No mechanical stress, preventing tearing.

3. Capable of processing complex patterns and micro-holes.

4. Minimal thermal impact, no yellowing or burning.

5. Suitable for single-layer PET film, composite film, adhesive film, black and white film, etc.

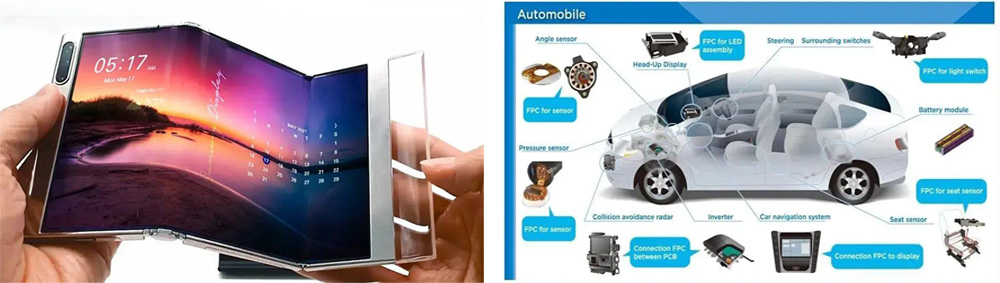

Flexible circuit board applications:

Flexible circuit boards are commonly used in the following areas: new energy vehicles, electronic equipment, computer peripherals, etc

Precision laser cutting of film materials is a highly suitable technology for cutting flexible circuit boards for the following reasons:

1. Precision cutting: Cuts complex circuits and patterns according to design requirements.

2. Contactless: Non-contact processing eliminates mechanical stress or damage to the flexible circuit board.

3. Efficient cutting: High speed, suitable for high-volume production.

4. Complex shape handling: Capable of precisely cutting very complex shapes and details.

5. Reduced heat-affected zone: A relatively small heat-affected zone reduces thermal damage or deformation to the circuit board.

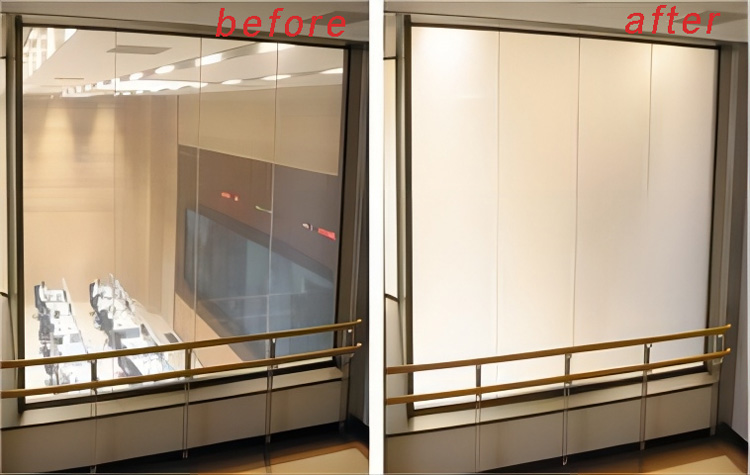

Shifting film cutting application

Low-power CO₂ laser cutting machine can be selected for processing, which is suitable for cutting PET film materials and has the characteristics of fast speed.

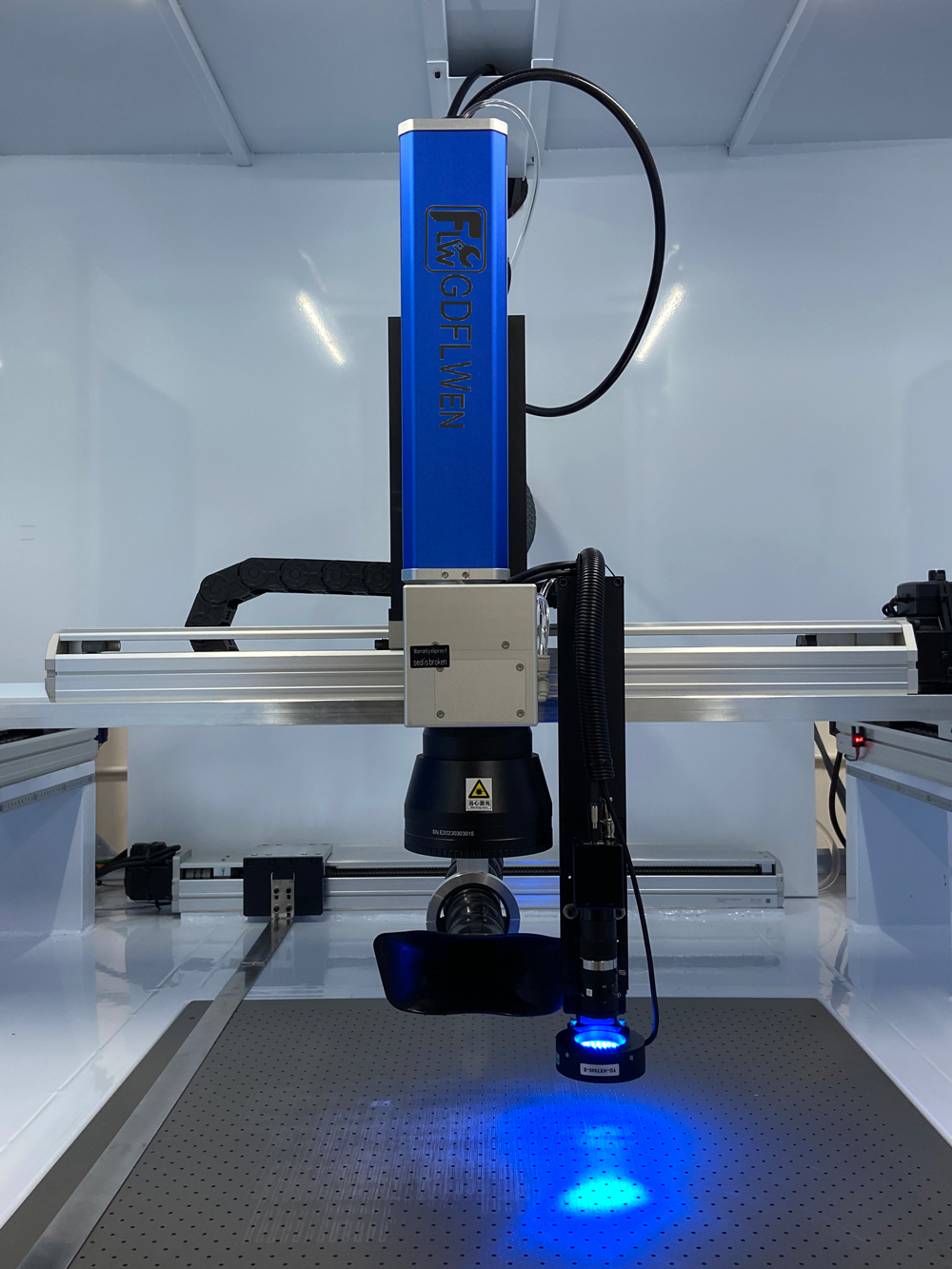

Features

1. High efficiency and precision for cutting complex patterns in one go, especially for laser cutting film materials.

2. Full- and partial-cut cutting is possible for materials 0.1-6mm thick. Single-layer PET can be cut without scratching glass.

Two layers can be cut simultaneously, cutting through only one layer without damaging the other.

3. Round wire cutting accuracy ≤ 0.03mm, repeatable cutting accuracy ≤ 0.01mm.
